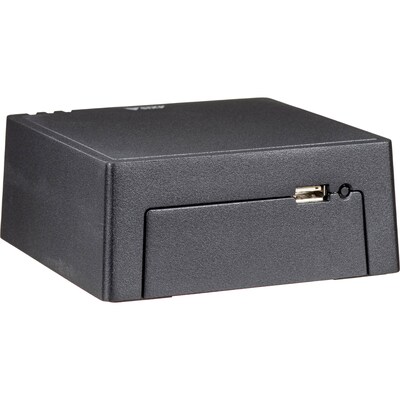

Axis Communications F9114-R Mk II 4-Channel Access Controller, Black (02999-001)
Item #:
901-IM1SN8151
Model #:
02999-001
Brand:
Axis Communications
Not yet rated. Be the first to
Write a review!
Out of stock
$899.00
Per each
Description
Compatible with select Axis F sensor units, the F9114-R Mk II 4-Channel Main Unit from Axis Communications offers a discreet surveillance solution when connected to a sensor unit. The F9114-R can connect to four different sensor units simultaneously. It delivers a resolution of 4K UHD at 15 fps or 720p at 60 fps. Suitable for emergency vehicles and buses, it features ignition control functionality with controlled shutdown to ensure you don't drain the vehicle's battery. Wide dynamic range ensures better image quality in poor lighting conditions. Compliance with ONVIF profiles G, M, S, and T enables interoperability with a wide range of surveillance devices.
- Rugged 4-channel video encoder compatible with Axis F-series sensor units and accessories.
- Designed for mobile and industrial surveillance in high-vibration environments like vehicles and outdoor setups.
- Measures approximately 1.7" (H) × 5.5" (W) × 4.3" (D) and weighs 1.5 lbs.
- Black in color and constructed from durable aluminum.

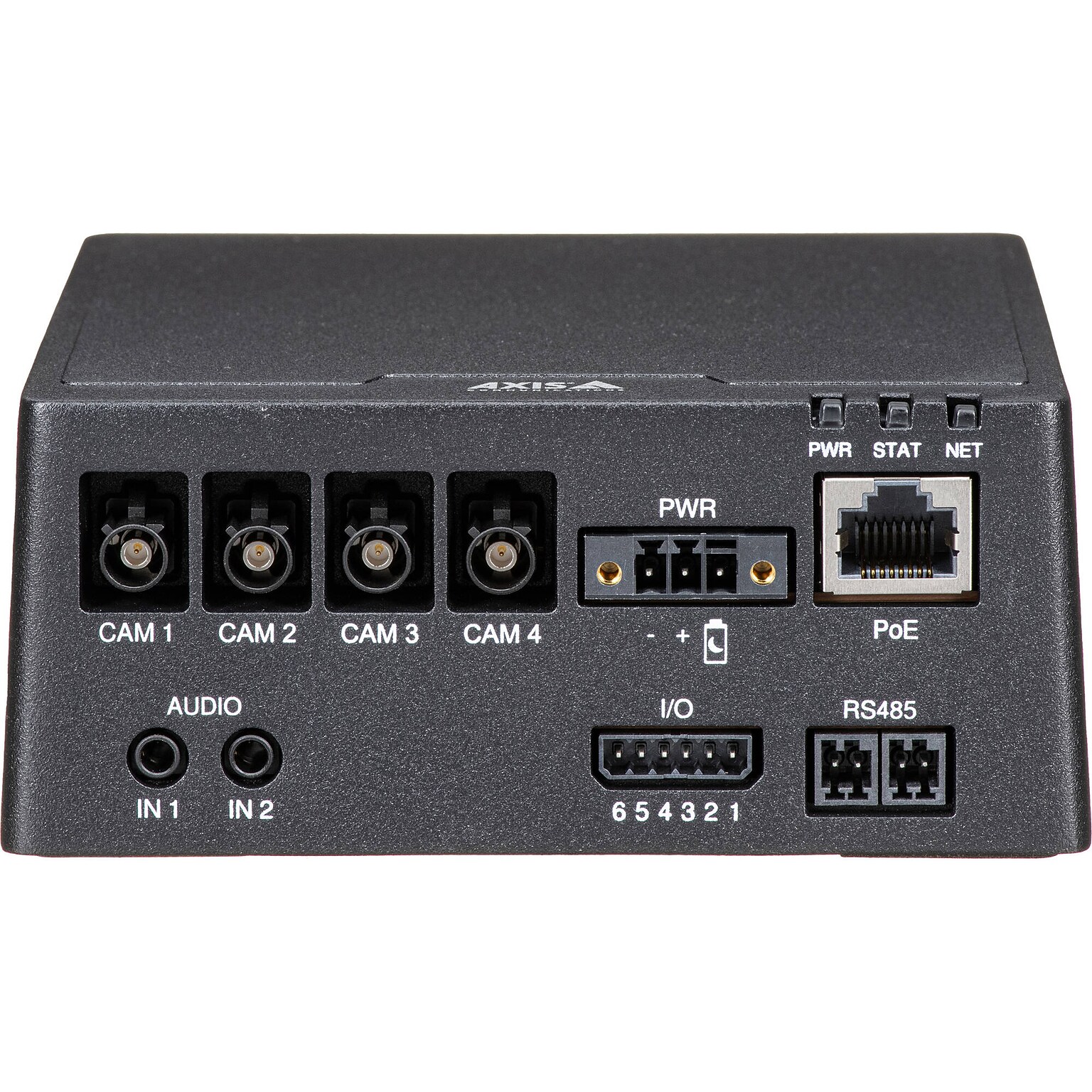

- Features RJ45 Ethernet, 4 FAKRA sensor ports, USB, RS485, mic inputs, and configurable I/O terminals.
- Supports 4K video, deep learning analytics, secure boot, privacy masking, and audio event detection.
- Powered via PoE (IEEE 802.3af/at) or 10–48 VDC with a max consumption of 25.5 W.
- Suitable for both indoor and outdoor use, especially in rugged and mobile environments.
- Streams in H.264, H.265, and MJPEG with support for Axis Zipstream and multiple configurable streams.
- Includes video motion detection, object analytics, and audio-based event triggers like scream or glass break.
- Limited 5-Year Manufacturer Warranty
Specifications
Brand
Axis Communications
Compatibility
AXIS F21, F41, F7225-RE sensor units, AXIS TU6004-E, TU6005, TU6007-E cables, AXIS TF9902 mount, AXIS Surveillance microSD cards
Connector, Port or Interface Type(s)
RJ45 Ethernet (PoE), 4× FAKRA connectors (for sensor units), 2× 3.5 mm mic/line in, RS485 terminal block, USB Type-A, 6-pin terminal block (I/O)
Depth in Inches
4.3
Height in Inches
1.7
Indoor or Outdoor Use
Indoor and Outdoor
Material of Item
Aluminum
Number of Channel(s)
4
Pack Qty
1
Power Source
PoE (IEEE 802.3af/at Type 2 Class 4), 10–48 VDC external power
Security System Accessory Type
Access Controller
True Color
Black
Weight (lbs.)
1.5
Width in Inches
5.5
Wired or Wireless
Wired
