Belkin® 20' Cat 6 RJ-45 Male/Male Snagless Patch Cable, Blue

See pricing info, deals and product reviews for Belkin® 20' Cat 6 RJ-45 Male/Male Snagless Patch Cable, Blue at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1U45991
  Model #: A3L980-20-BLU-S
Brand: belkin
Not yet rated.Be the first to Write a Review!

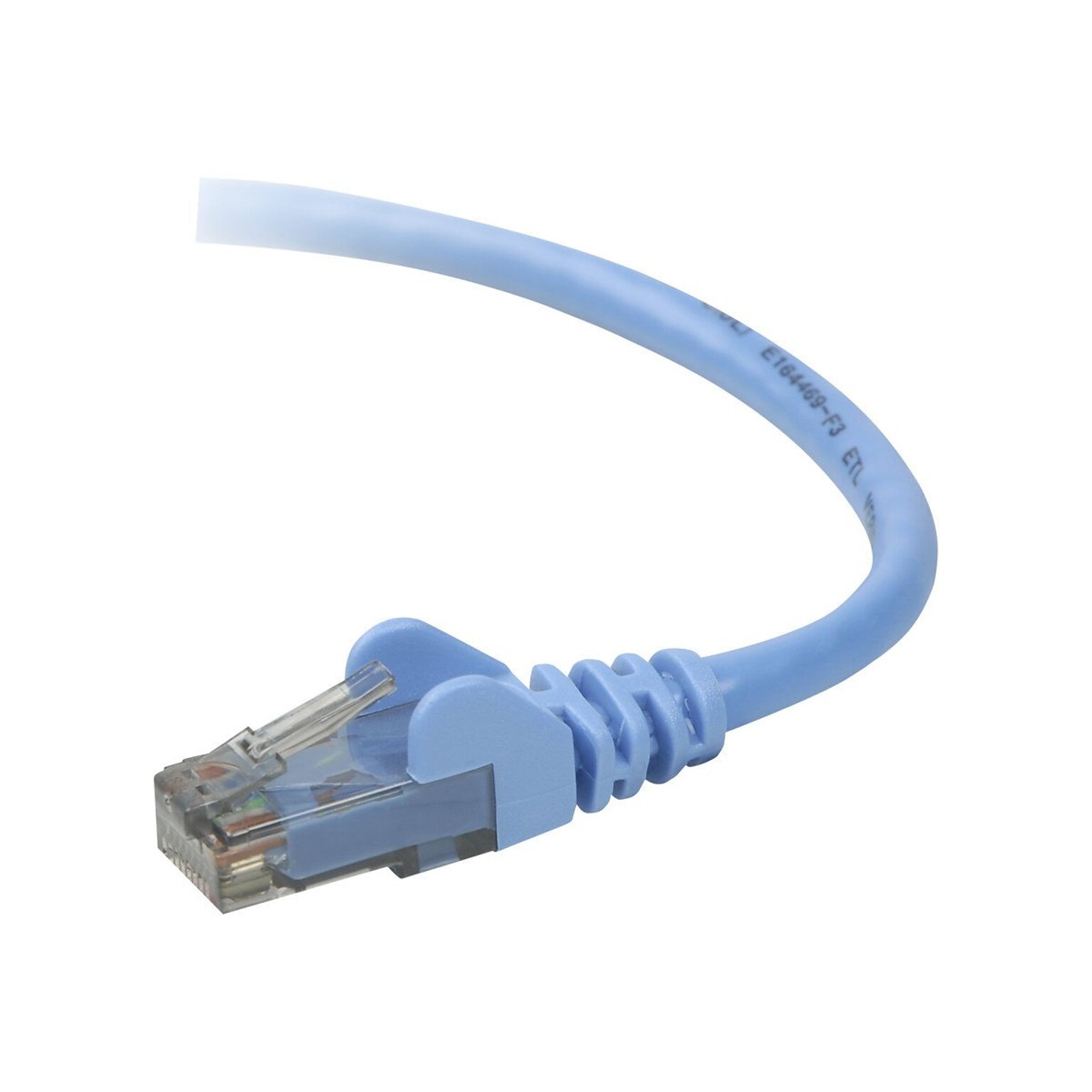

Belkin® 20 Cat 6 RJ-45 Male/Male Snagless Patch Cable, Blue
Delivery Date:

Enter Zip Code
Parcel
Description
Belkin® 20'' Cat6 Snagless patch cable in blue color has RJ-45 male connectors on first/second end and provides clean transmissions. Belkin® 20'' Cat6 RJ-45 Male/male snagless patch cable in blue color features a high quality construction for peak performance and optimal data transmission. Molded/snagless cable has gold plated connector for a neat and durable transmission.
  • Blue
  • Cable type: Cat-6
  • 20'
  • Connection: 8-pin RJ-45 male to 8-pin RJ-45 male
  • Material: PVC, jacket diameter: 5.5 +/-0.2 mm, Rating: 75 deg C, 300V
  • Conductor: Copper
  • Technology: Unshielded twisted pair
  • Connector plating: Gold plated, staggered pin configuration
  • Features: Molded, snagless
  • Insulation material: HDPE, characteristic impedance: 100+/-150 at 1 - 550 MHz, structural return loss: 8.6dB min at 550 MHz, propagation delay: 536nS/100m max at 550 MHz
  • Conductor construction: Bare stranded copper, Conductor resistance: 93.8O/km/20 deg C max, Mutual capacitance: 56 pF/m max, Dielectric strength: AC 1.5kV/min, Spark test: 2.5kV, Flame-retardant test: CMR, Cable standard: 24AWG x 4pairs
  • Compatibility: Belkin omniview SMB 1x16 KVM-over-IP switch, SMB 1x8 KVM-over-IP switch, Belkin omniview SMB CAT5 KVM switch
  • Warranty: Lifetime limited
Specifications
Brand : Belkin Customizable : No
Weight : 0.45 lbs. per Each
