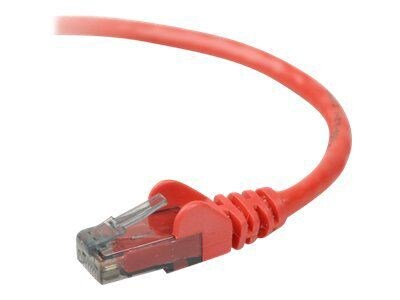

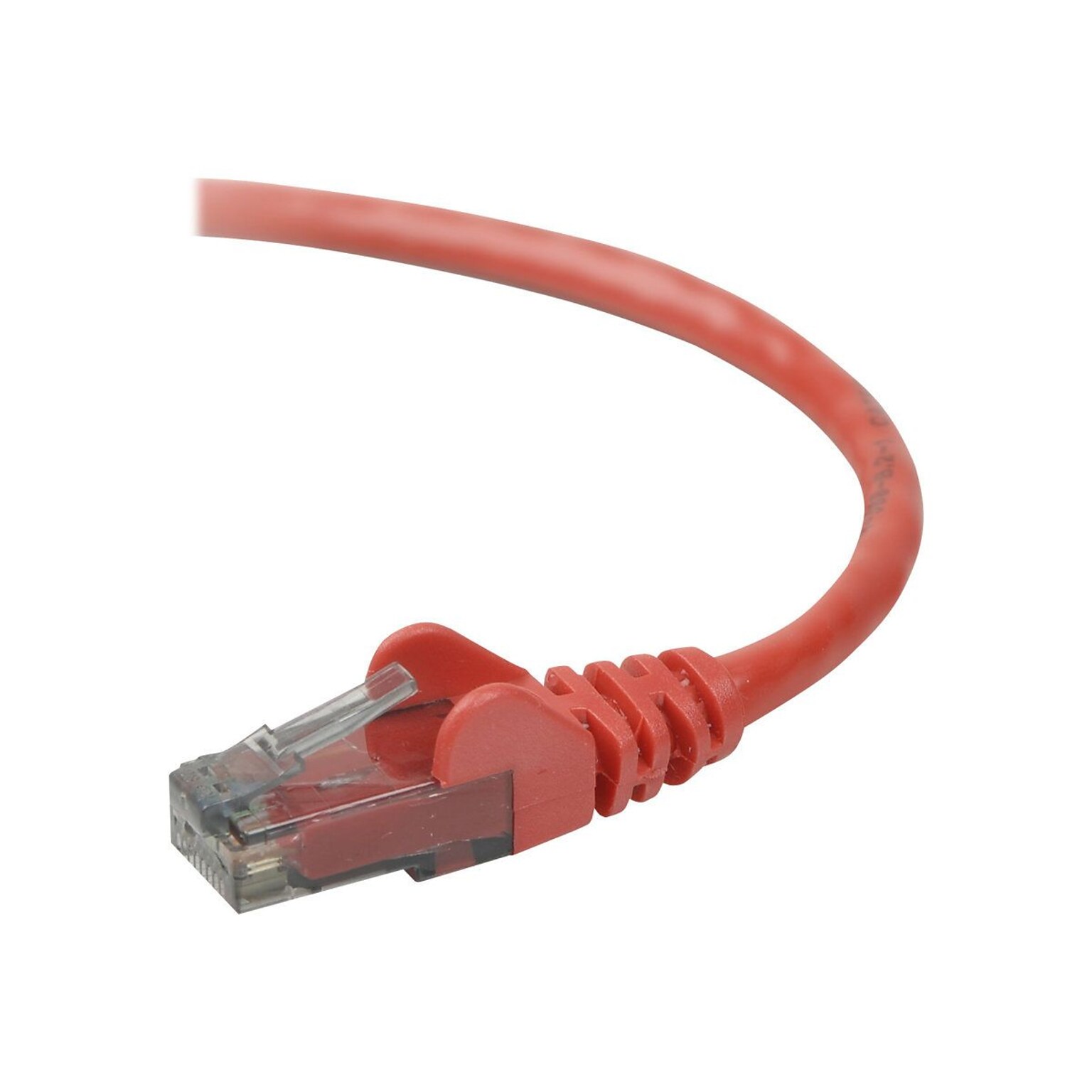

Belkin™ A3L980-20-RED-S 20 RJ-45 Male/Male Cat 6 Snagless UTP Patch Cable; Red
Belkin™ A3L980-20-RED-S 20' RJ-45 Male/Male Cat 6 Snagless UTP Patch Cable; Red
$14.59
Per each

  1. Computers & Accessories
  2. Computer Accessories & Peripherals
  3. Cables
  4. Adapters & Splitters
  5. Ethernet Cables

Belkin™ A3L980-20-RED-S 20' RJ-45 Male/Male Cat 6 Snagless UTP Patch Cable; Red

Order Belkin™ A3L980-20-RED-S 20' RJ-45 Male/Male Cat 6 Snagless UTP Patch Cable; Red today at Quill.com and get fast shipping. Stack coupons to get free gifts & extra discounts!
Item #: 901-IM1R35545
Model #: A3L980-20-RED-S
Brand: Belkin
Not yet rated. Be the first to Write a review!
Belkin™ A3L980-20-RED-S 20 RJ-45 Male/Male Cat 6 Snagless UTP Patch Cable; Red
Loading...
$14.59
Per each
Ship to :
60069
Delivery Tue, Jun 6 - Wed, Jun 7

Limited quantity available: 12 remaining

Request quote
The Belkin™ red 20' RJ-45 male/male Cat 6 snagless UTP patch cable is suitable for use with Belkin Omniview SMB one 16 KVM-over-IP switch, SMB one 8 KVM-over-IP switch and SMB CAT5 KVM switch. Boost-up your network using a CAT6 snagless networking cable and enjoy clean, clear transmissions without any trouble. It offers one RJ-45 male on first end and one RJ-45 male on second end for connectivity. It has 24 AWG x 4-pair bare stranded copper conductor with gold plated connector for better conductivity. It includes 5.5 +/- 0.2 mm PVC jacket along with HDPE insulation for added protection. It is great for VoIP, video and file transfers.
  • Cat 6 snagless UTP patch cable for Belkin Omniview SMB one 16 KVM-over-IP switch, SMB one 8 KVM-over-IP switch & SMB CAT5 KVM switch
  • Cable length: 20'
  • Connections: One RJ-45 male on both ends
  • Bare stranded copper conductors for better conductivity and a PVC jacket for added safety
  • Meets ISO/IEC 11801 and TIA/EIA-568-B.2-1 certifications and standards
  • Connector finish: Gold-plated
  • Comes in red color
  • Wire gauge: 24 AWG x 4 pairs
  • Jacket diameter: 5.5 +/- 0.2 mm
  • Rating: 75 deg C, 300 V, Conductor resistance: 93.8 Ohm/km/20 deg C, Mutual capacitance: 56 pF/m, Dielectric strength: AC 1.5 kV/min
  • Structural return loss: 8.6 dB min at 550 MHz, Propagation delay: 536 nS/100 m at 550 MHz
  • Molded, staggered pin configuration, category 6 performance rated for any 10Base-T, 100Base-T and 1000Base-T network
  • Maximize your network speed with higher bandwidth
  • Perfect for VoIP, video and file transfers
  • Comes with lifetime limited warranty
Brand
Belkin
Cable Length (ft)
20
Cable Use
Data
Color Family
Black
Device Type
Computer
End 1 Connector Type
RJ45
End 2 Connector Type
RJ45
Ethernet
Yes
True Color
Black
