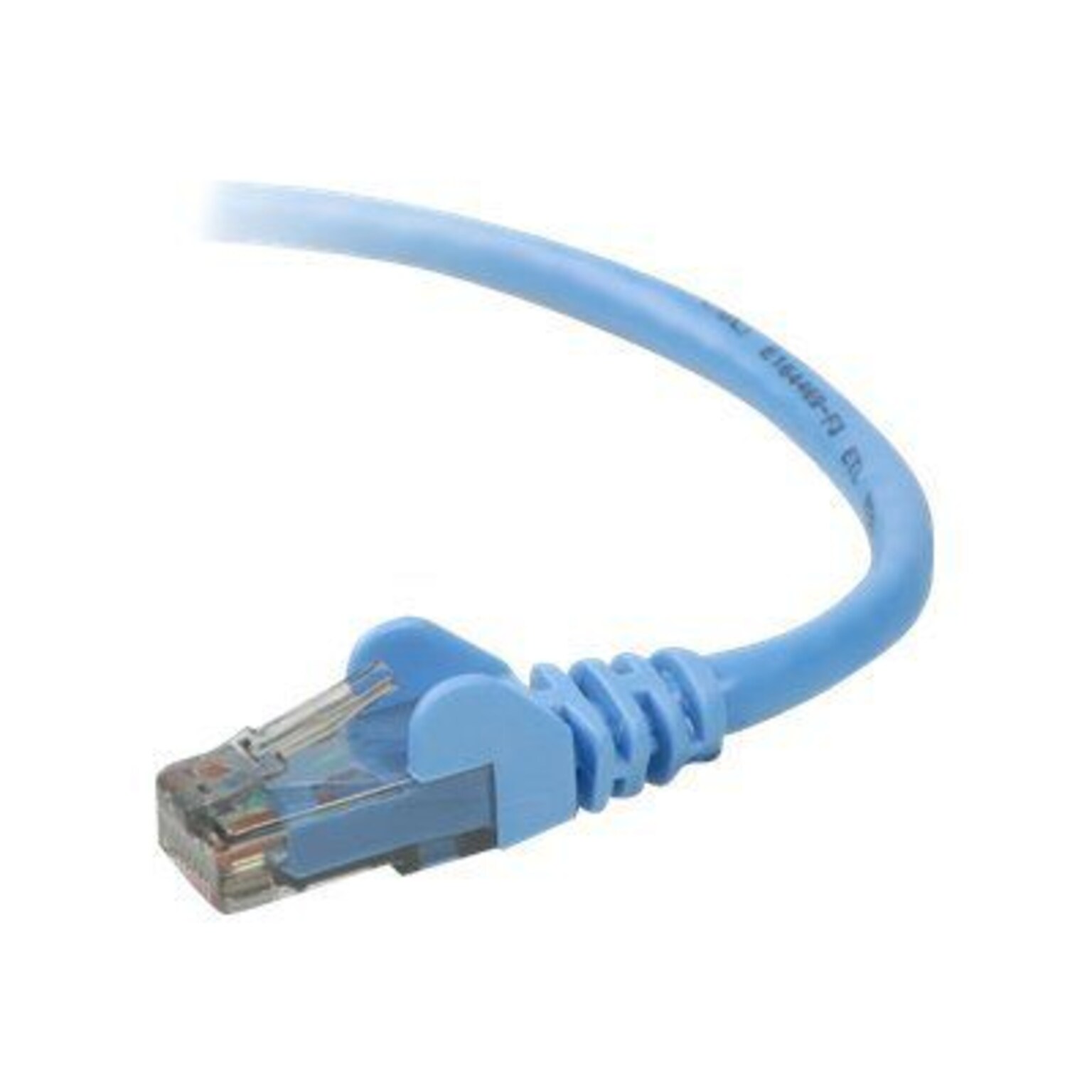

Belkin A3L980B-BLU-S 3' RJ-45 Male/Male Cat6 Snagless Patch Cable; Blue

See pricing info, deals and product reviews for Belkin A3L980B-BLU-S 3' RJ-45 Male/Male Cat6 Snagless Patch Cable; Blue at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1L09178IN
  Model #: A3L980B03-BLU-S
Brand: belkin
Not yet rated.Be the first to Write a Review!
Belkin A3L980B-BLU-S 3 RJ-45 Male/Male Cat6 Snagless Patch Cable; Blue
Delivery Date:

Enter Zip Code
Parcel
Description
The Belkin ™ 3' blue Cat6 snagless patch cable features RJ-45 50-micron gold-plated male connectors on both the ends for clear signal transmission. This male/male cable has bare stranded copper conductors for high conductivity and PVC jacket for added durability. Patch cable featuring staggered pin configuration is suitable for VoIP, video as well as file transfers. This cable enhances network speed with higher bandwidth.
  • Cat6 UTP snagless patch cable is suitable for VoIP, video and file transfers
  • Cable length: 3'
  • Connections: one RJ-45 male connector on both ends
  • PVC Jacket for added durability and 4-pair 24 AWG bare stranded copper conductors for excellent signal transmission
  • Meets ISO/IEC 11801, TIA/EIA-568-B.2-1 standards and certifications
  • Contact material: 50 micron gold-plated
  • Compatible with Belkin Omniview SMB 1x16 KVM-over-IP switch, SMB 1x8 KVM-over-IP switch and SMB CAT5 KVM switch
  • Comes in blue color
  • Diameter: 5.9 mm + 0.15 mm jacket
  • Dielectric strength: 1.5 kV (AC)
  • Resistance: 93.8 Ohm/km/20 deg C max, Impedance: 100 Ohm + 15 Ohm at 1 - 550 MHz
  • Mutual capacitance: 56 pF/m max
  • Propagation delay: 536 ns/100 m max. at 550 MHz, Structural return loss: 8.6 dB min at 550 MHz
  • Staggered pin configuration ensures optimal data transmission
  • CM flame retardant tested
  • Comes with lifetime limited warranty
Specifications
Brand : Belkin Customizable : No
Weight : 0.10 lbs. per Each
