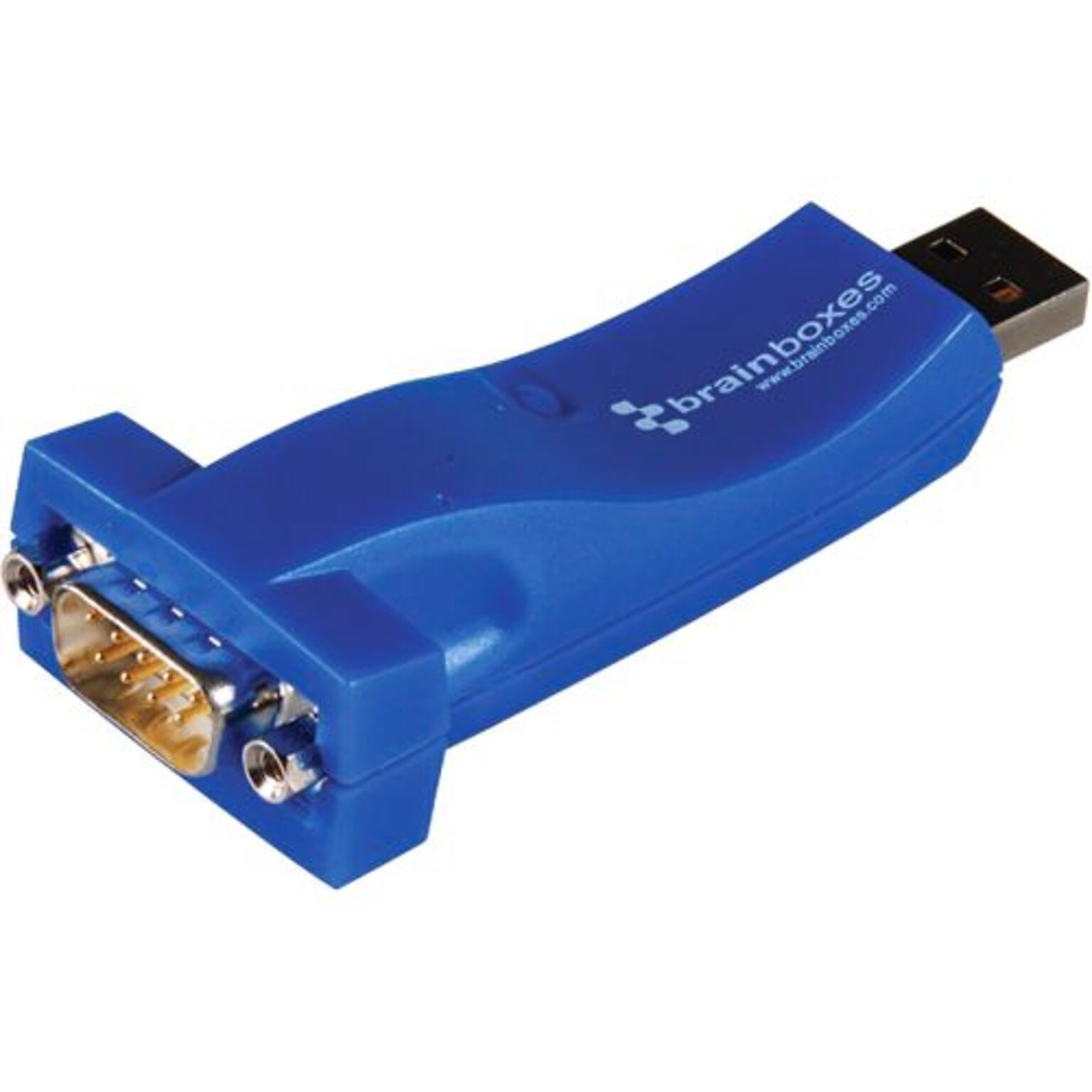

Brainboxes US-101-001 1 Port RS232 USB To Serial Adapter
Item #:
901-BX9912ING
Model #:
BX9912
Brand:
Brainboxes
Not yet rated. Be the first to
Write a review!
Out of stock
$73.49
Per each
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
True Color
USB
Height in Inches
Depth in Inches
Width in Inches
# of Ports
Brand
Connector, Port or Interface Type(s)
Connects Devices (To and From)
KVM Cable or Switch Type
VGA
Warranty Information
$73.49 each
Black/Blue
0.8
3.5
Yes
1.4
N/A
Brainboxes
N/A
N/A
N/A
N/A
Lifetime
Description
Brainboxes 1 Port USB to serial adapter drivers for all popular operating systems and supports 921,600 bytes data transfer rate to provide high performance.
- USB 2.0
- Data transfer rate: Up to 921600 baud, USB 2.0: 480 Mbps
- Ports: 1 x 9-pin DB-9 male RS-232 serial, 1 x type-A male USB
- Dimensions: 3.5" x 1.4" x 0.8"
- Form factor: External
- Power consumption: 40mA at 5V
- Serial port: Ports: 1, Protocol: RS232, Connector: DB9 connector - 9 pin male
- Operating distance: EIA - RS232 standard, Tx FIFO size: 128, Rx FIFO size: 256
- Max baud rate: 921600, Data bits: 7 or 8, Parity: odd, even, none, mark or space, Stop bits: 1 or 2
- Tx/Rx modes: Point to point
Specifications
Brand
Brainboxes
Depth in Inches
3.5
Height in Inches
0.8
True Color
Black/Blue
USB
Yes
Warranty Information
Lifetime
Width in Inches
1.4
