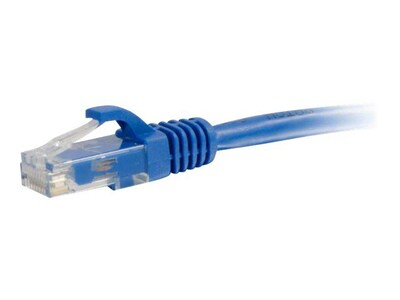

C2G 22015 15' Blue RJ-45 Male/Male Cat6 Snagless Network Patch Cable for Network Adapters/Hubs

See pricing info, deals and product reviews for C2G 22015 15' Blue RJ-45 Male/Male Cat6 Snagless Network Patch Cable for Network Adapters/Hubs at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1KL0244IN
  Model #: 3024948
Brand: C2G Cables to Go
Not yet rated.Be the first to Write a Review!
C2G 22015 15 Blue RJ-45 Male/Male Cat6 Snagless Network Patch Cable for Network Adapters/Hubs
Delivery Date:

Enter Zip Code
Parcel
Description
The C2G 22014 15' Cat6 snagless blue network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
  • Network patch cable is suitable for Fast Ethernet and Gigabit computer networks
  • Dimensions: 15'L
  • Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
  • Comes in blue color and features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact and HDPE insulation
  • Has RJ-45 male to RJ-45 male end for connectivity
  • 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
  • 50-micron gold plated contacts for protection against corrosion
  • 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
  • DC resistance: 9.38 Ohm/100 m maximum
  • Voltage: 30 V
  • Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
  • Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
  • Temperature rating: 60 deg C
  • Snagless design secures clips when plugging and unplugging
  • Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
  • Meets RoHS compliance and TIA/EIA standards and certifications
  • Weight: 0.4 lbs.
  • Comes with lifetime warranty
Specifications
Brand : C2G Cables to Go Customizable : No
Weight : 0.40 lbs. per Each
