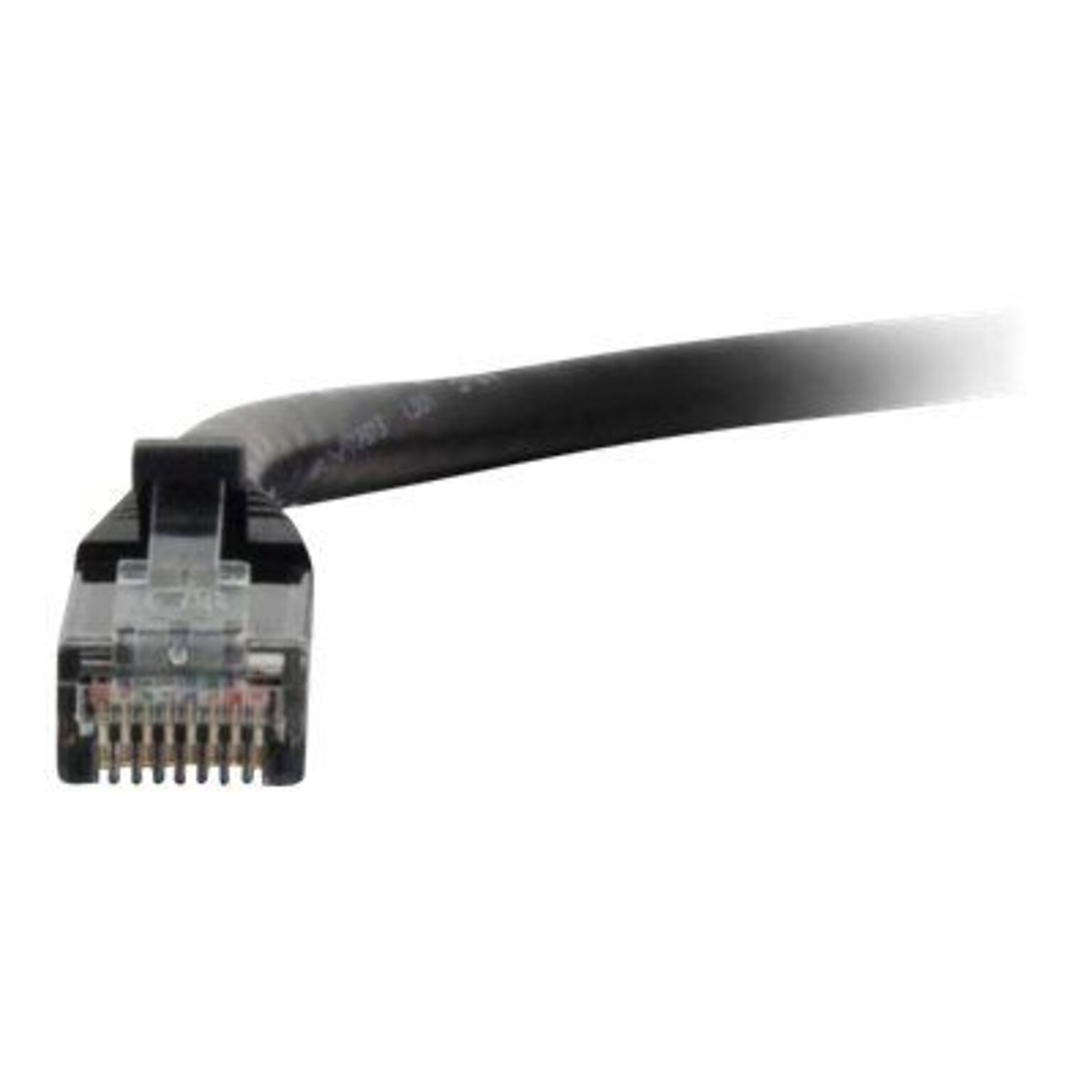

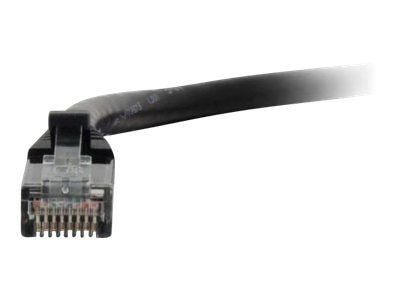

C2G ® 27155 25' RJ-45 Male/Male Cat6 Snagless Unshielded Ethernet Network Patch Cable; Black

See pricing info, deals and product reviews for C2G ® 27155 25' RJ-45 Male/Male Cat6 Snagless Unshielded Ethernet Network Patch Cable; Black at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1J64314IN
  Model #: 1739731
Brand: C2G Cables to Go
Not yet rated.Be the first to Write a Review!
C2G ® 27155 25 RJ-45 Male/Male Cat6 Snagless Unshielded Ethernet Network Patch Cable; Black
Delivery Date:

Enter Zip Code
Parcel
Description
The C2G ® 25' black Cat6 snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both ends for enhanced connectivity. This male/male cable with PVC jacket truncates both impedance and structural return loss. This cable, with 24 AWG stranded bare copper conductor, minimizes near-end crosstalk levels. The patch cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
  • Cat6 snagless unshielded network patch cable for fast Ethernet networks, requiring bandwidth-intensive voice, data or video distribution applications
  • Cable length: 25'
  • Connections: one 8-pin RJ-45 male connector on both ends
  • Connectivity: Wired
  • PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
  • Meets RoHS, TIA/EIA standards and certifications
  • Contact material: 50 micron gold-plated copper alloy
  • Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
  • Comes in black color
  • Data transfer rate: 1000 Mbps
  • Diameter: 6.2 mm + 0.3 mm OD, 0.98 + 0.05 mm conductor, 0.6 mm minimum average thickness
  • Voltage rating: 30 V
  • Resistance: 9.38 ohm/100 m (maximum) DC conductor, 100 ohm insulation
  • Capacitance: 5600 pF/100 m, Propagation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
  • Temperature: 60 deg C
  • Snagless design protects clips while plugging and unplugging operation
  • Perfect for Gigabit 1000base-T, 100base-T, 10base-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-Any LAN, 100 Mbps TP-PMD, voice and T1
  • Weight: 0.71 lbs.
  • Comes with lifetime warranty
Specifications
Brand : C2G Cables to Go Customizable : No
Weight : 0.70 lbs. per Each
