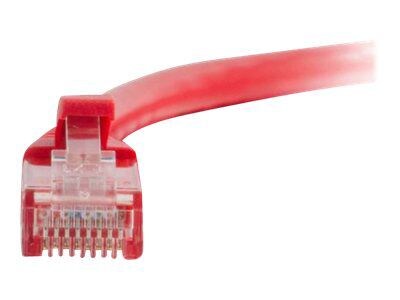

C2G 27181 3' RJ-45 Male/Male Cat6 Snagless Unshielded Ethernet Network Patch Cable, Red
Item #:
901-IM1U40307
Model #:
27181
Brand:
C2G Cables to Go
Not yet rated. Be the first to
Write a review!
Out of stock
$6.09
Per each
Item is out of stock in your zip code 91765. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
Brand
Cable Use
End 1 Connector Type
End 2 Connector Type
Ethernet
Cable Length (ft)
Color Family
Device Type
True Color
$6.09 each
C2G Cables to Go
Data
RJ45
RJ45
Yes
N/A
N/A
N/A
N/A
Description
- Cat6 snagless unshielded network patch cable for fast Ethernet networks, requiring bandwidth-intensive voice, data or video distribution applications
- Cable length: 3'
- Connections: one 8-pin RJ-45 male connector on both ends
- Connectivity: Wired
- PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, TIA/EIA standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in red color
- Data transfer rate: 1000 Mbps
- Diameter: 6.2 mm + 0.3 mm OD, 0.98 + 0.05 mm conductor, 0.6 mm minimum average thickness
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) DC conductor, 100 ohm insulation
- Capacitance: 5600 pF/100 m, Propagation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for Gigabit 1000base-T, 100base-T, 10base-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-Any LAN, 100 Mbps TP-PMD, voice and T1
- Weight: 0.11 lbs.
- Comes with lifetime warranty
Specifications
Brand
C2G Cables to Go
Cable Use
Data
End 1 Connector Type
RJ45
End 2 Connector Type
RJ45
Ethernet
Yes
