C2G 54332 6' DisplayPort to VGA Male/Male Active Adapter Cable; Black
See pricing info, deals and product reviews for C2G 54332 6' DisplayPort to VGA Male/Male Active Adapter Cable; Black at Quill.com. Order online today and get fast, free shipping for your business.

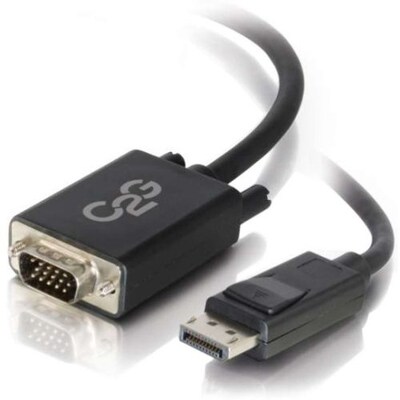

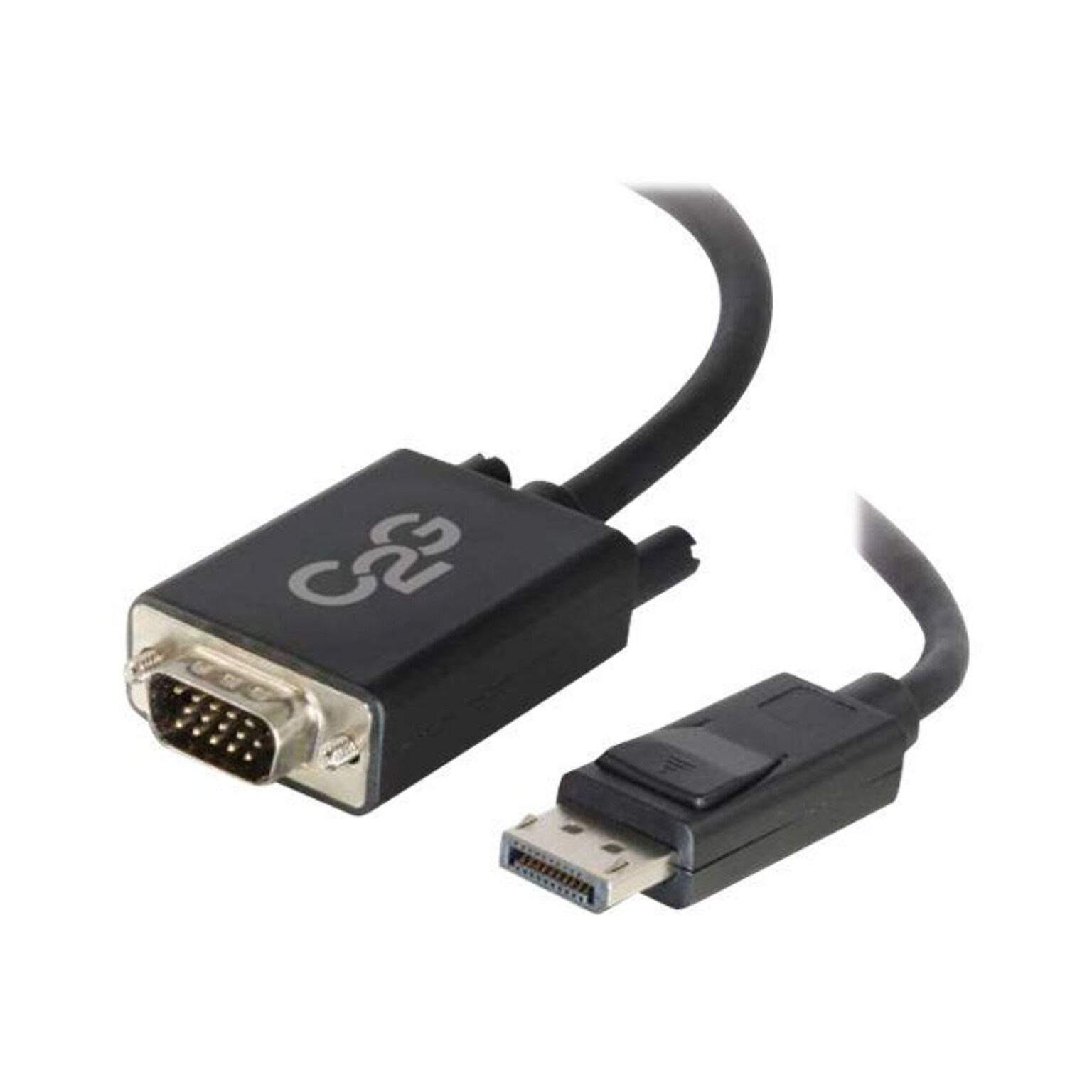

The C2G 6' black adapter cable is a perfect solution for connecting the DisplayPort output to a computer monitor or other display that accepts a VGA input. It has a DisplayPort male digital audio/video connector on first end and 15-pin HD-15 male VGA connector on the second end. This adapter cable carries an analog video signal and supports up to 1920 x 1200 resolution for superior video quality. It meets the requirements of high performance applications. This cable is suitable for extending the life of the current display in a desk setup.
Adapter cable is a perfect solution for connecting the DisplayPort output of a laptop to a computer monitor which accepts a VGA input
Length: 6'
Has one 20-pin DisplayPort male digital audio/video connector on first end and one 15-pin HD-15 VGA male connector on second end
PVC jacket offers protection against corrosive environment
Features aluminum foil braided shielding and FM-PE insulation to minimize EMI/RFI interference
Conductor: 30 AWG (7/0.1) tinned copper
Compatible with PC
Voltage rating: 30 V, Time delay: 5.2 ns/m (max.)
Conductor resistance: At 20 deg C max
Insulation resistance: 10 M Ohms/km
Attenuation: 5.02 dB at 100 - 450 MHz, 7.69 dB at 1 GHz, 12.595 dB at 2 GHz, 17.495 dB at 3 GHz, 22.395 dB at 4 GHz and 37.095 dB at 7 GHz
Temperature: 0 - 50 deg C (operating), -25 to 70 deg C (storage)
