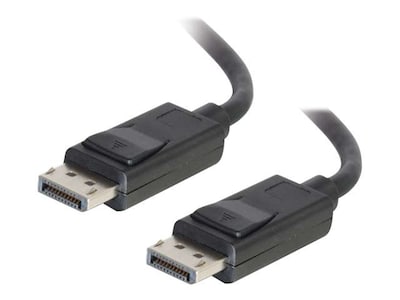

C2G® 54402 10' DisplayPort Male/Male Cable with Latches; Black
See pricing info, deals and product reviews for C2G® 54402 10' DisplayPort Male/Male Cable with Latches; Black at Quill.com. Order online today and get fast, free shipping for your business.
The C2G® 10' black Displayport cable is a perfect solution for connecting the DisplayPort output of a laptop to a monitor or other display, which accepts a DisplayPort input. It has a DisplayPort male DisplayPort 1.2 digital audio/video connector on both the ends. This cable comes with the latches that secure the cable in the port carries a digital audio/video signal. It supports a HBR bandwidth and up to 1920 x 1080 resolution for superior video quality. This cable meets the requirements of high performance applications.
Cable for connecting the DisplayPort output of a laptop to a computer monitor that accepts a DisplayPort input
Cable length: 10'
Has 20-pin DisplayPort male digital audio/video connector on first end and 20-pin DisplayPort male digital audio/video connector on second end
PVC jacket offers protection against corrosive environment
Features aluminum foil wrap braided shielding and foam-polyethylene insulation to minimize EMI/RFI interference
Features two 30 AWG tinned copper conductors for enhanced conductivity
Voltage rating: 30 V
Minimum bend radius: 73 mm
Supports audio/video device, monitor and notebook
Supports a high bit rate bandwidth and up to a 4k resolution
Insulation resistance: 10 MOhms/km, Conductor resistance: at 20 deg C max
Time delay: 5.2 ns/m, Attenuation: 5.02 dB at 100 - 450 MHz, 7.69 dB at 1 GHz, 12.595 dB at 2 GHz, 17.495 dB at 3 GHz, 22.395 dB at 4 GHz
Carries a digital audio/video signal and features locking latch for enhanced operation
