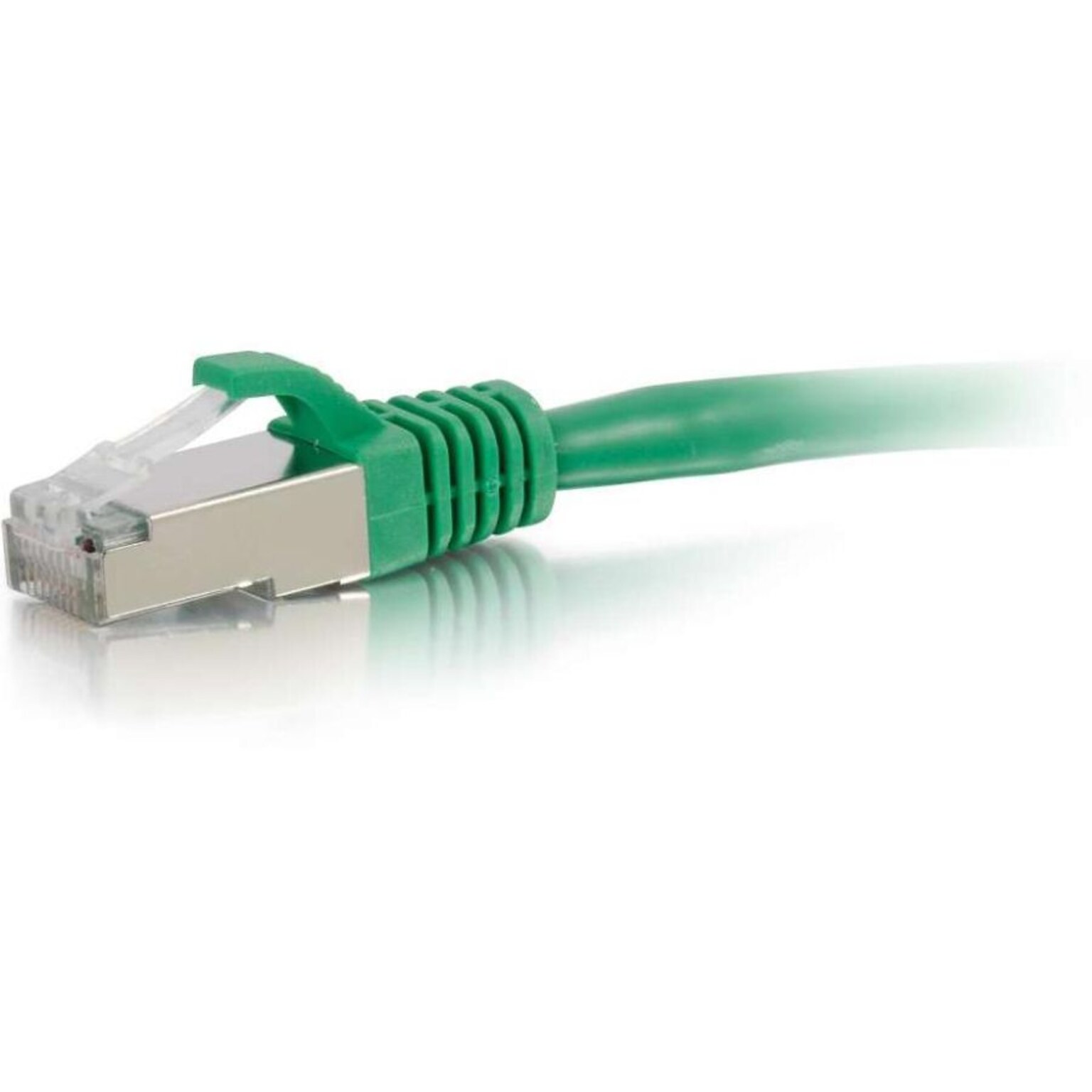

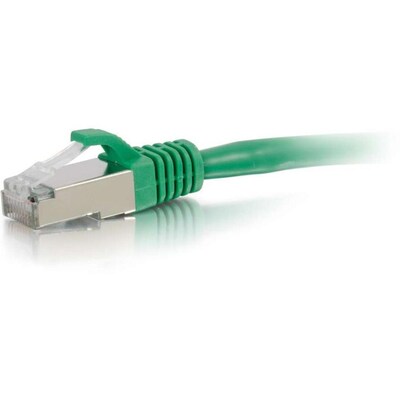

C2G ® 834 10' RJ-45 Male/Male Cat6 Snagless Shielded Ethernet Network Patch Cable, Green
$15.99
Per each
C2G ® 834 10' RJ-45 Male/Male Cat6 Snagless Shielded Ethernet Network Patch Cable, Green
Item #:
369-IM1TC9745
Model #:
00834
Brand:
C2G Cables to Go
Not yet rated. Be the first to
Write a review!
Price drop
$15.99
Per each
Want an extra discount today, and every day? Start your free trial.
C2G ® 834 10' RJ-45 Male/Male Cat6 Snagless Shielded Ethernet Network Patch Cable, Green
Description
The C2G ® 10-foot green Cat6 snagless shielded Ethernet network patch cable features RJ-45 male connectors on both ends for enhanced connectivity. The male/male cable with PVC jacket truncates both impedance and structural return loss. The cable with 26 AWG bare copper conductor minimizes near-end crosstalk levels. This patch cable maintains the twist spacing throughout the line up to the termination point. It is compatible with hub, switch, router, network adapter, modem DSL/cable modem, patch panel and other high performance networking applications in high noise environments.
- Network patch cable safeguards high speed network from noise and electromagnetic interference
- Cable length: 10'
- Connections: one RJ-45 male connector on both ends
- Connectivity: Wired
- FR-PVC Jacket for added durability and 26 AWG stranded bare copper conductors for excellent signal transmission
- Meets ANSI/TIA 568 C.2, CE standards and certifications
- Contact material: 50 micron gold-plated, Shell: Nickel plated for shieldingCompatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels & other networking applications in high noise environments
- Comes in green color
- Diameter: 6.2 mm + 0.2 mm OD jacket, 1.02 + 0.05 mm insulation
- Diameter: 6.2 mm + 0.2 mm OD jacket, 1.02 + 0.05 mm insulation
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) DC conductor
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 75 deg C
- High quality cable and plug construction effectively minimizes near-end crosstalk levels
- Protects from EMI/RFI interference
- Weight: 0.31 lbs.
- Comes with lifetime warranty
Specifications
Brand
C2G Cables to Go
Cable Gauge (AWG)
26
Cable Jacket Material
PVC
Cable Length (ft)
10
Cable Use
Networking
Color Family
Green
Connector Finish
Gold-Plated
Connector Gender
Male to Male
Direct Attach Cable (DAC)
No
End 1 Connector Type
RJ45
End 2 Connector Type
RJ45
Ethernet
Yes
True Color
Green
Warranty Information
Lifetime
