Description

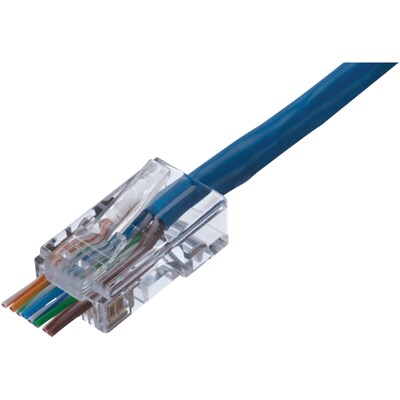

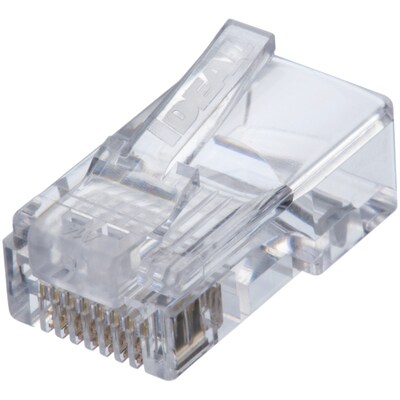

The open-end CAT-5E Feed-Thru RJ45 Mod Plugs (50 pk) from IDEAL offers several advantages over standard closed-end connectors. Conductor order can be verified prior to crimping. Conductors that feed-thru the connector are inserted or pulled into the connector to ensure that the twisted pairs are as close to the pin contacts as possible and that the jacket is seated beyond the primary strain relief for a secure connection. Conductors can be cut flush with the end face of the connector when used with the FT-45 Crimp Tool.
- Simplifies twisted pair assembly process
- Flush-cut of excess conductors minimizes inadvertent contact outside of plug
- 8-position, 8-contact RJ45 mod plug for CAT-5E, 100O balanced twisted pair 100MHz cables
- 50 micro-inch gold plating on contact mating area for long-term reliability in connectivity
- Conductors trimmed to the correct length by the tool without measuring
- Designed for best performance when used with IDEAL FT-45 Crimp Tools
- 50 pk
Specifications
Brand
IDEAL
Cable Management Length (Feet)
0 to 0.9
Cable Management Type
Modular Inserts
Color Family
Clear
Material of Item
Plastic
Warranty Information
1 Year
