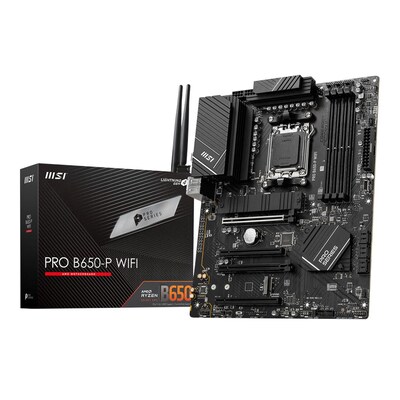

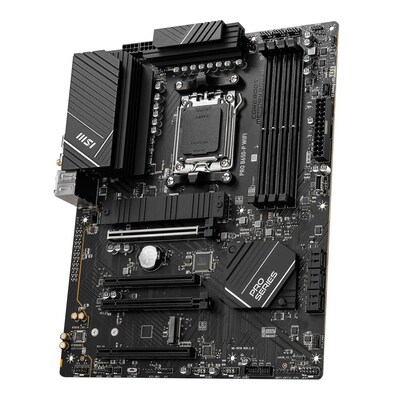

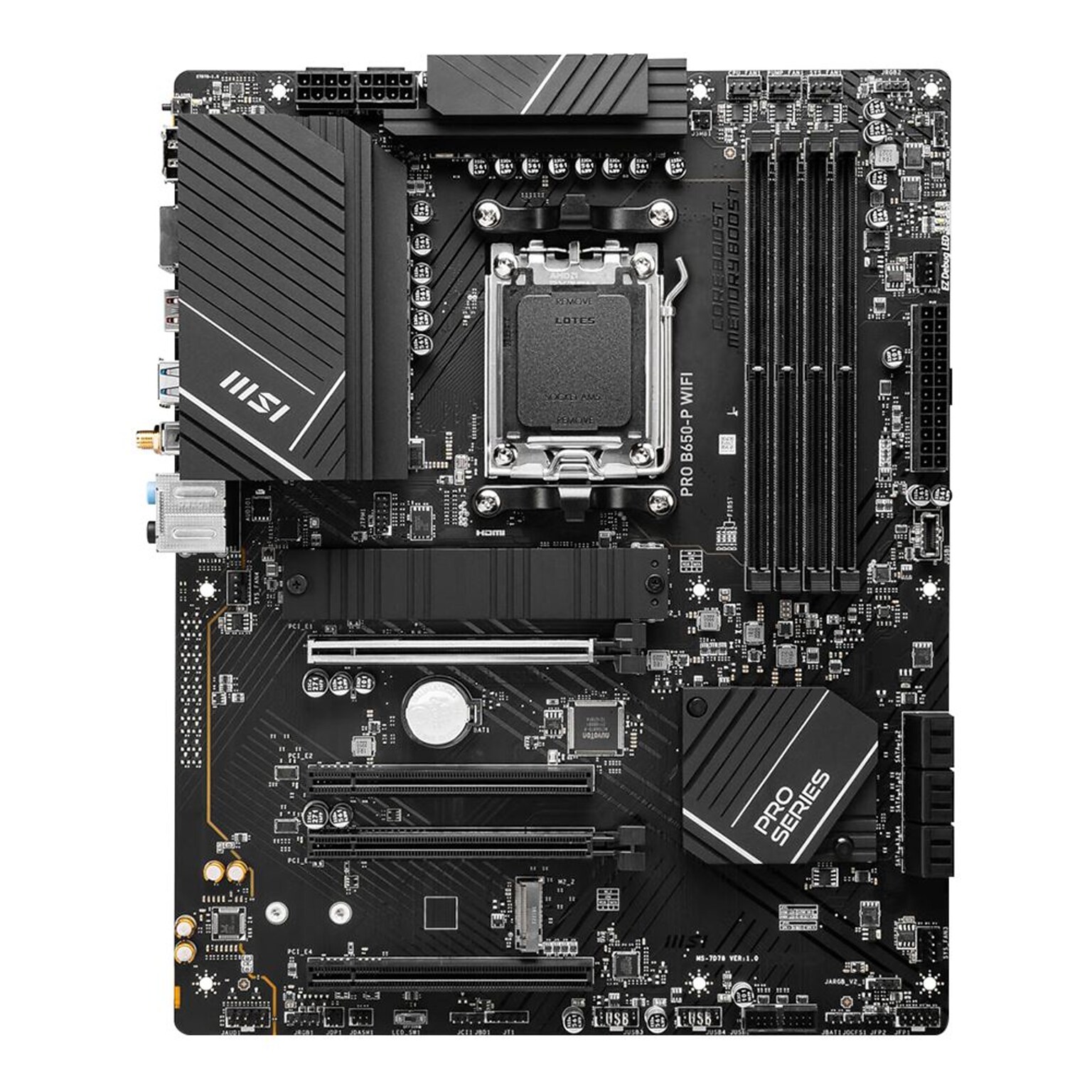

MSI PRO Socket AM5 ATX AMD Ryzen Desktop Motherboard (B650PWIFI)
Item #:
901-IM108HL71
Model #:
B650PWIFI
Brand:
MSI
Not yet rated. Be the first to
Write a review!
Out of stock
$215.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
Memory Technology
Motherboard & Accessory Type
Motherboard Form Factor
Number Of DIMMs
Total Memory Capacity
Type of Processor
Warranty Information
Audio Technology
Bios Support
Brand
Chipset
Connector, Port or Interface Type(s)
CPU
Depth in Inches
Expansion Slots
Graphics Output
Height in Inches
Integrated LAN
Memory Channel Count
Memory Speed
Network Communications
Number of PCI Ports
OS Compatibility
Processor Technology
Series or Collection
Socket
True Color
Width in Inches
$215.99 each
DDR5
Desktop Motherboards
ATX
4
256GB
AMD Other
3 Year
Realtek ALC897 Codec, 7.1-Channel High Definition Audio
Flash BIOS Button (update BIOS without CPU/RAM), UEFI BIOS with GUI, Secure Boot, TPM 2.0 support
MSI
AMD B650

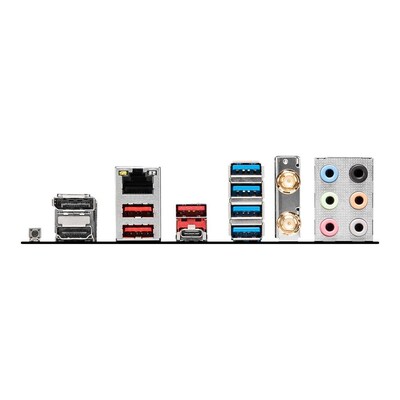

3x USB 3.2 Gen 2 Type-A (10Gbps), 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps), 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A, USB Type-C
AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
9.6
N/A
HDMI: 1x HDMI 2.1 (Supports up to 4K @ 60Hz); DisplayPort: 1x DP 1.4 (Supports up to 4K @ 60Hz)
N/A
Realtek 8125BG 2.5G LAN
N/A
DDR5 4800MHz (JEDEC) up to 7200+ MHz (OC)
Realtek 8125BG 2.5Gbps Ethernet; Wi-Fi 6E (pre-installed module in M.2 Key-E slot); Bluetooth 5.3
4
Windows 11 64-bit, Windows 10 64-bit
Supports AMD EXPO (Extended Profiles for Overclocking)
Pro
AM5
Black
12
DDR5
Desktop Motherboards
Micro ATX
2
128GB
Intel
3 Year
Realtek ALC887 Audio Codec
automatic updates of the latest BIOS
Asus
Intel H810 Chipset
USB 3.2 Gen 1, USB 2.0, SATA 6Gb/s, M.2 slots, LAN, and audio jacks.
Intel Core Ultra Processors
8.8
2
Supports HDMI and D-Sub ports for versatile display options
N/A
Intel Gigabit Ethernet
2
6400
Integrated LAN (Intel I219-V Gigabit Ethernet
2
Compatible with Windows 10, Windows 11, and Linux distributions.
Intel Hyper-Threading Technology
PRIME
LGA 1700
N/A
9.6
DDR5
Desktop Motherboards
ATX
4
128GB
N/A
N/A
N/A
N/A
Asus
N/A
N/A
N/A
N/A
5
N/A
12
N/A
N/A
N/A
IEEE 802.11 a/b/g/n/ac/ax
5
N/A
N/A
TUF Z790-Plus Wifi
N/A
N/A
9.6
DDR5
Desktop Motherboards
ATX
N/A
256GB
AMD Other
3 Year
Realtek® ALC1220 HD Audio CODEC with support for DSD audio, 2/4/5.1/7.1-channel output, and S/PDIF Out
AMI UEFI BIOS with Q-Flash, Q-Flash Plus, Smart Backup, and GIGABYTE Control Center
Aorus
AMD X870
USB4-C, USB-A Gen2/Gen1, USB 2.0, SATA, M.2 PCIe 5.0/4.0, HDMI, DP, LAN, S/PDIF, Audio jacks, TPM header
AMD Ryzen™ 9000 / 8000 / 7000 Series
N/A
N/A
2 × USB4 Type-C with DisplayPort Alt Mode (up to 4K@240Hz), 1× HDMI 2.1 (up to 4096×2160@60Hz), 1 × Front HDMI 1.4 (up to 1920×1080@30Hz)
N/A
Realtek® 2.5GbE
N/A
Up to 8200 MT/s (OC)
Realtek® 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925 or Realtek Wi-Fi 7 RTL8922AE, Bluetooth 5.4
N/A
Windows 11 64-bit
AMD EXPO™, Turbo Boost, Overclocking Support
AORUS ELITE
Socket AM5
Ice-themed Black/Silver
N/A
Frequently bought together
Out of stock
Item #: 901-IM108HL71
$215.99
Per each
$215.99
+
Total
$715.98
Description
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Compatible with AMD Ryzen 7000 Series processors, designed for desktop computing, productivity, and gaming applications.
- Supports DDR5 memory up to 7200+ MHz (OC) and PCIe 4.0 for fast data transfer and responsive performance in demanding tasks.
- Graphics output includes 1x HDMI 2.1 and 1x DisplayPort 1.4, both supporting up to 4K resolution at 60Hz.
- Powered by the Realtek ALC897 codec, delivering 7.1-channel HD audio with de-pop protection, quality capacitors, and isolated signal paths for clear, low-noise sound.
- ATX form factor offers a balanced layout for expandability, cooling, and compatibility with mid- and full-tower cases.
- Latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Wi-Fi 6E supports the 6GHz band, MU-MIMO, and BSS Coloring, delivering wireless speeds of up to 2400Mbps.
- MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Memory Boost technology ensures clean data signals for optimal performance, stability, and compatibility.
- Comes with a 3 year limited warranty.
Specifications
Audio Technology
Realtek ALC897 Codec, 7.1-Channel High Definition Audio
Bios Support
Flash BIOS Button (update BIOS without CPU/RAM), UEFI BIOS with GUI, Secure Boot, TPM 2.0 support
Brand
MSI
Chipset
AMD B650
Connector, Port or Interface Type(s)
3x USB 3.2 Gen 2 Type-A (10Gbps), 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps), 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A, USB Type-C
CPU
AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Depth in Inches
9.6
Graphics Output
HDMI: 1x HDMI 2.1 (Supports up to 4K @ 60Hz); DisplayPort: 1x DP 1.4 (Supports up to 4K @ 60Hz)
Integrated LAN
Realtek 8125BG 2.5G LAN
Memory Speed
DDR5 4800MHz (JEDEC) up to 7200+ MHz (OC)
Memory Technology
DDR5
Motherboard & Accessory Type
Desktop Motherboards
Motherboard Form Factor
ATX
Network Communications
Realtek 8125BG 2.5Gbps Ethernet; Wi-Fi 6E (pre-installed module in M.2 Key-E slot); Bluetooth 5.3
Number Of DIMMs
4
Number of PCI Ports
4
OS Compatibility
Windows 11 64-bit, Windows 10 64-bit
Processor Technology
Supports AMD EXPO (Extended Profiles for Overclocking)
Series or Collection
Pro
Socket
AM5
Total Memory Capacity
256GB
True Color
Black
Type of Processor
AMD Other
Warranty Information
3 Year
Width in Inches
12
