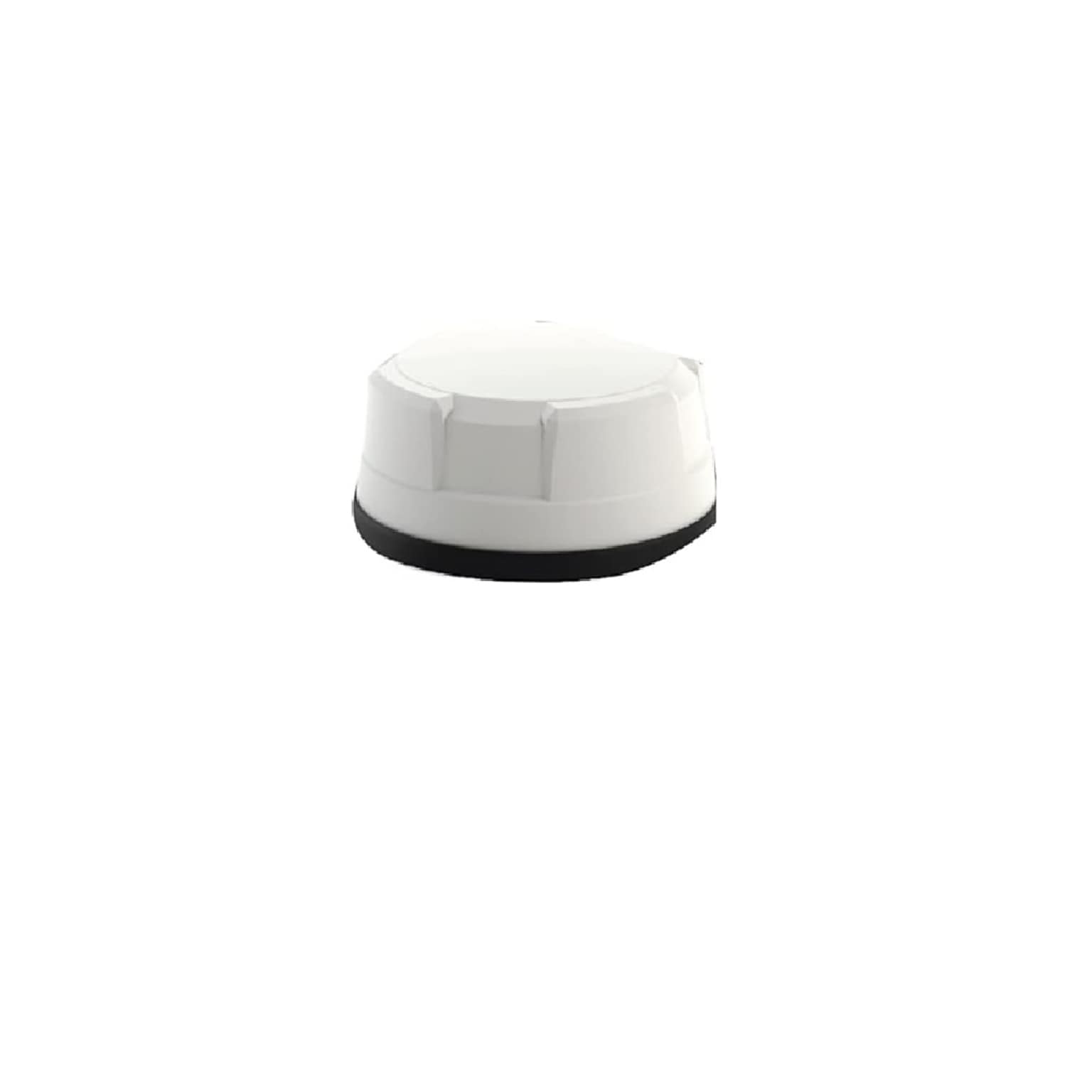

Sierra Wireless 8-in-1 Dome Antenna, White (6001345)
Item #:
901-IM18RB775
Model #:
6001345
Brand:
Sierra Wireless
Not yet rated. Be the first to
Write a review!
Out of stock
$314.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Description
The 8-in-1 Dome is a custom single antenna solution for the MG90 5G 4x4, tested and certified for mobile applications. The antenna has a low-profile design that contains eight isolated high-performance antenna elements in a single housing for optimal coverage; four ultra-wideband elements spanning 617- 6000MHz; a high performance GNSS antenna with an integrated 26dB gain LNA; and 3x3 MIMO dual band 2.4/5GHz Wi-Fi elements. The 6001345 (white) AirLink antennas provide 4x4 MIMO 5G LTE, 3x3 MIMO WiFi, and GPS for the Semtech (Sierra Wireless) MG90 series of routers. The compact design packs eight isolated, high-performance antenna elements (8-in-1) into a single rugged dome. These have been tested and certified to operate with select AirLink LTE MG90 router. The 4x4 MIMO wideband cellular antennas operate over the 617 to 6000 MHz LTE frequency range, and the 3x3 MIMO dual-band Wi-Fi antennas support 2.4 and 5 GHz networks. It also includes a high-performance GPS/GNSS antenna with 26 dB gain LNA and high-quality filtering for superior positioning accuracy. Built with ground plane independence, the antenna maintains a high level of performance, whether mounted on a metal or non-metallic surface. A complete set of 5-meter long low-loss extension cables are included with male SMA (cellular and GPS) and reverse polarity SMA (WiFi) connectors.
- Upgrade your connectivity with this 8-in-1 dome antenna, engineered for AirLink MG90 5G routers. It combines four ultra-wideband LTE/5G elements, three dual-band Wi-Fi elements, and a high-performance GNSS antenna in one sleek housing
- Enjoy exceptional signal strength with up to 7dBi gain for Wi-Fi and 6dBi for LTE/5G, plus 26dB LNA gain for GNSS, ensuring reliable connectivity and precise location tracking
- Designed for Sierra Wireless AirLink MG90 and other advanced mobile networking solutions, supporting global LTE/5G bands and dual-band Wi-Fi for high-speed data
- Compact yet powerful with a diameter of 180 mm (7.1") and height of 80 mm (3.1")
- Finished in clean white and built with LEXAN EXL9330 polycarbonate housing, plus an IP69K rating for ultimate durability in harsh outdoor environments
Specifications
Brand
Sierra Wireless
Compatibility
Airlink MG90 Mobile Router
Height in Inches
3.1
Networking Accessory Type
Antenna
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
White
