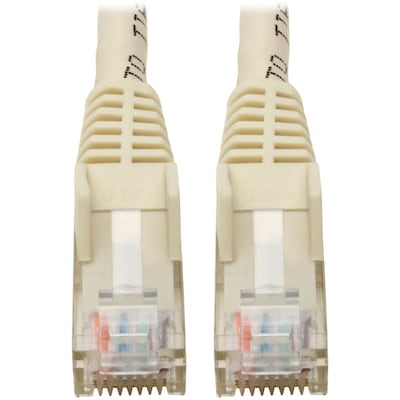

Tripp Lite Cat6 GbE Gigabit Ethernet Snagless Molded Patch Cable UTP White RJ45 M/M 6in 6" (N201-06N-WH)
$4.41
Per each
Tripp Lite Cat6 GbE Gigabit Ethernet Snagless Molded Patch Cable UTP White RJ45 M/M 6in 6" (N201-06N-WH)
Item #:
901-IM12DA006
Model #:
N201-06N-WH
Brand:
Tripp Lite
Not yet rated. Be the first to
Write a review!
$4.41
Per each
Want an extra discount today, and every day? Start your free trial.
Tripp Lite Cat6 GbE Gigabit Ethernet Snagless Molded Patch Cable UTP White RJ45 M/M 6in 6" (N201-06N-WH)
Limited quantity available: 7 remaining
Description
The N201-06N-WH Premium Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire. This six-inch white cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair stranded UTP with a rugged PVC jacket, the N201-06N-WH delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum. The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11).
- Premium cabling for Cat6 home/office network applications
- Rated for 550 MHz/1 Gbps communications
- Snagless connectors prevent damaged tabs during installation
- 24 AWG 4-pair stranded UTP with PVC jacket
- Integral strain relief protects connectors from stress and cracking
- Certifications & Standards: IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)
Specifications
Brand
Tripp Lite
Cable Gauge (AWG)
24
Cable Jacket Material
PVC
Cable Length (ft)
0.5
Cable Length (Inches)
6
Cable Use
Networking
Color Family
White
Conductor Material
Copper
Connector Finish
Gold-Plated
Connector Gender
Male to Male
Data Transfer Rate (Gbps)
1
Data Transfer Rate (Mbps)
1000
Device Type
Computer
Direct Attach Cable (DAC)
No
End 1 Connector Type
RJ45
End 2 Connector Type
RJ45
Ethernet
Yes
True Color
White
Warranty Information
Lifetime
