Tripp Lite PDU Monitored 5/5.8kW 208/240V, 20 C13 4 C19, LX Platform Interface, 0URM Rackmount Vertical TAA (PDUMNV30HVLX)
Item #:
901-IM12DA021
Model #:
PDUMNV30HVLX
Brand:
Tripp Lite
(1 reviews)
Item #:
901-IM12DA021
Out of stock
$947.24
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description

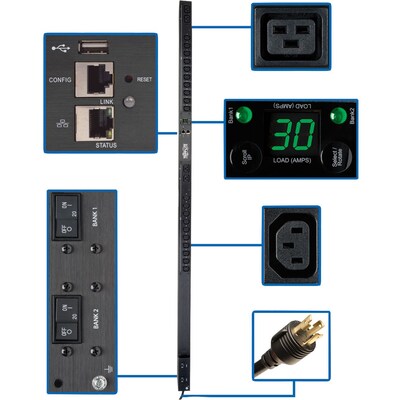

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
- 24 outlets-20 C13, 4 C19-with cord retention brackets
- NEMA L6-30P input with 10 ft. AC power cord
- Digital ammeter for on-site load monitoring in real time
- Built-in LX Platform interface for remote access
Specifications
Brand
Tripp Lite
Cable Length (ft.)
10
Depth in Inches
2.65
Height in Inches
70
Input Connector
1 x NEMA L6-30P
Input Current
30 A
Input Voltage
200/208/240 V
Load Capacity
5 - 5.8 kW
Outlet Connectors
4 x IEC 60320 C19, 20 x IEC 60320 C13
Outlet Count
24
Output Frequency
50/60 Hz
Overload Protection
Two 20 A Breakers Protect 12 Outlets Each
Phase
Single-Phase
Power Distribution Unit Type
Monitored PDU
Power Supply
200/208/240 V
True Color
Black
Warranty Information
2 Year
Weight (lbs.)
11.5
Width in Inches
2.2
