Tripp Lite Single-Phase 120 VAC Metered Power Distribution Unit, 12-Outlet, 2U Rack Mount, Black (PDUMH20-6)
Item #:
901-IM1ZL8420
Model #:
PDUMH20-6
Brand:
Tripp Lite
Not yet rated. Be the first to
Write a review!
Out of stock
$328.99
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description

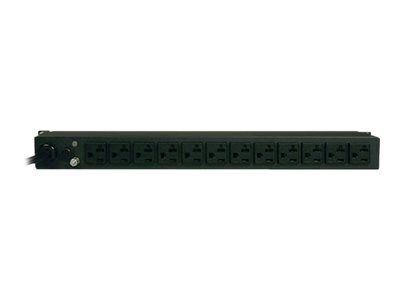

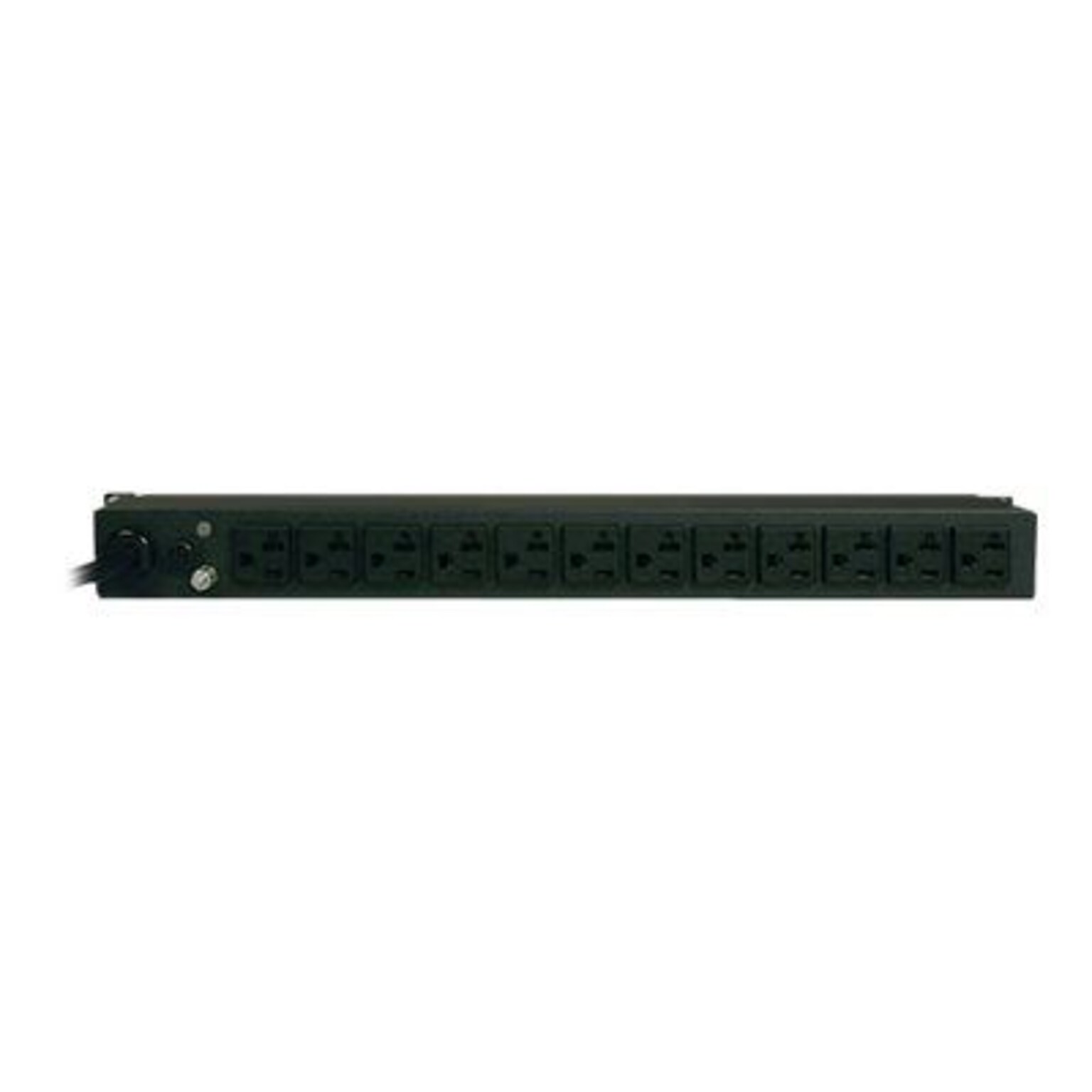

The Tripp Lite PDUMH20-6 single-phase metered PDU features built-in 2-digit visual meter that shows load level in amps and NEMA L5-20P 20 A 120 V input plug with 6' line cord. It has 12 NEMA 5-15/20R outlet receptacles for enhanced connectivity and offers 1U horizontal rackmount installation. This PDU features rugged all-metal housing for enhanced protection.
- Single-phase metered PDU is ideal for UPS
- Dimensions: 1.8"H x 17.5"W x 3.8"D
- Comes in black color, metal construction
- Output receptacles: 12 x NEMA 5-15/20R, Input receptacles: NEMA L5-20P
- Protection type: Overload protection
- Input voltage: 120 VAC, Output voltage: 120 VAC, Input current: 20 A
- Frequency required: 50/60 Hz, Power rating: 1.9 kW
- Cable length: 6'
- Form factor: 1U, 2U horizontal rackmount, vertical rackmount, wall mountable, under-counter
- Front panel LCD display: Digital display reports total PDU output current in amps
- Storage temperature: 5 to 122 deg F, Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'
- Mounting ears support reversible for front or rear facing rackmount installation
- Mounting flanges support installation in 2 and 4 post racks and offer additional support for wall-mount and under-counter installation formats
- Back panel grounding lug to prevent damage
- Contains L5-20R to 5-20P plug adapter, owner's manual with warranty information
- Meets Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant certifications and standards
- Weight: 4.6 lbs.
- Comes with 2 years limited warranty
Specifications
Brand
Tripp Lite
Cable Length (ft.)
6
Depth in Inches
3.8
Height in Inches
1.8
Input Current
20 A
Input Voltage
120 VAC
Outlet Count
12
Output Frequency
50/60 Hz
Output Voltage
120 VAC
Overload Protection
Yes
Phase
Single-Phase
Power Distribution Unit Type
Metered
Rack Units
2U
True Color
Black
Warranty Information
2 Year
Weight (lbs.)
4.6
Width in Inches
17.5
