Tripp Lite Single-Phase Metered Power Distribution Unit, 48-Outlet, Black (PDUMV30HV2)
$743.18
Per each
Tripp Lite Single-Phase Metered Power Distribution Unit, 48-Outlet, Black (PDUMV30HV2)
Item #:
901-IM11R2830
Model #:
PDUMV30HV2
Brand:
Tripp Lite
Not yet rated. Be the first to
Write a review!
$743.18
Per each
Want an extra discount today, and every day? Start your free trial.
Tripp Lite Single-Phase Metered Power Distribution Unit, 48-Outlet, Black (PDUMV30HV2)
Description
The Tripp Lite PDUMV30HV2 5.8 kW single-phase metered PDU has 48 outlets for distributing single-phase AC power to rack-mounted equipment. The ammeters in this PDU, allows you visually monitor each bank and maintain balanced loads to prevent circuit overloads due to breakers tripping. It has special guards to prevent the breakers from tripping accidentally. This PDU comes with NEMA L6-30P input plug with 10' cord to connect to your AC power source, generator or protected UPS.
- Power distribution unit offers reliable and cost effective power distribution
- Dimensions: 70"(H) x 2.2"(W) x 2.5"(D)
- Metal construction for long lasting durability

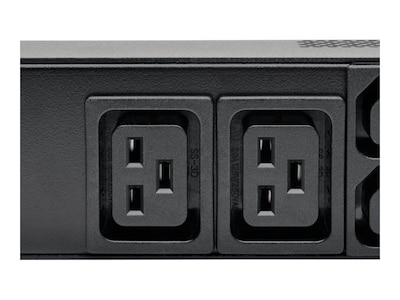

- Receptacles: NEMA L6-30P input, eight IEC 60320 C19 and 40 x IEC 60320 C13 output
- Voltage: 208/240 VAC at 50/60 Hz input/output, Input current: 30 A
- Output capacity: 5.8 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Offers overload protection
- Operating temperature: 32 - 122 deg F (0 - 50 deg C), Storage temperature: 5 - 140 deg F (-15 - 60 deg C)
- Comes with outlets arrangement in two separate load banks, each with 24 outlets
- Ammeters allow you visually monitor each bank and maintain balanced loads to avoid circuit overloads and downtime due to breakers tripping
- Special guards aid to prevent the breakers from tripping accidentally while outlets, breakers come color-coded and labeled for easy identification
- Contains plug-lock inserts (8 C20, 40 C13), spare installation buttons, 2.9 mm/4.6 mm, ground screw, mounting hardware and owner's manual
- Meets UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS, TAA standards or certifications
- Weight: 12.35 lbs.
- Comes with 2 years limited warranty
Specifications
Brand
Tripp Lite
Cable Length (ft.)
10
Depth in Inches
2.5
Height in Inches
70
Input Current
30 A
Load Capacity
5.8 kW
Operating Temperature (Fahrenheit)
32 - 122 deg F
Outlet Count
48
Output Frequency
50/60 Hz
Overload Protection
Yes
Phase
Single-Phase
Power Distribution Unit Type
Metered
True Color
Black
Warranty Information
2 Year
Weight (lbs.)
12.35
Width in Inches
2.2
