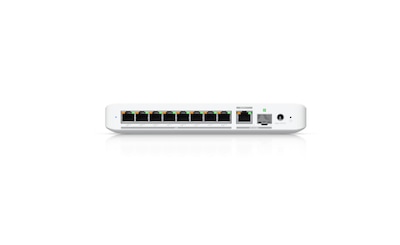

Ubiquiti UniFi 8 Ethernet Ports Managed PoE Network Switch, 2.5 Gbps, White (USW-Flex-2.5G-8-PoE)
$199.00
Per each
Ubiquiti UniFi 8 Ethernet Ports Managed PoE Network Switch, 2.5 Gbps, White (USW-Flex-2.5G-8-PoE)
Item #:
901-24638032
Model #:
USWFLEX25G8POE
Brand:
Ubiquiti
Not yet rated. Be the first to
Write a review!
New
$199.00
Per each
Want an extra discount today, and every day? Start your free trial.
Ubiquiti UniFi 8 Ethernet Ports Managed PoE Network Switch, 2.5 Gbps, White (USW-Flex-2.5G-8-PoE)
Description
The Ubiquiti UniFi USW-Flex-2.5G-8-PoE is a compact yet powerful managed Layer 2 switch designed for high-performance networking environments. It features eight 2.5GbE RJ45 ports, all supporting PoE++ output, and includes a combo port that accommodates either a 10G SFP+ uplink or a multi-gig RJ45 connection for flexible high-speed backhaul. Engineered for versatility, the switch can be wall-mounted, magnetically mounted, or DIN rail-mounted (with accessory), and supports a total switching capacity of 60 Gbps with 30 Gbps non-blocking throughput. It is ideal for powering multiple PoE devices such as access points and cameras, with up to 210W of total PoE budget when using an AC adapter. The USW-Flex-2.5G-8-PoE is managed via the UniFi Network Controller and provides enterprise-grade features such as VLAN support, port mirroring, storm control, and jumbo frame support, making it a robust solution for both home labs and business networks.
- The switch includes a total of eight 2.5 Gigabit Ethernet RJ45 ports for high-speed wired connectivity, and one combo uplink port supporting either a 10G SFP+ module or a multi-gig RJ45 connection.
- This is a managed Layer 2 switch offering enterprise-level control via the UniFi Network Controller for streamlined configuration and monitoring.
- All eight RJ45 ports support PoE++ (IEEE 802.3bt), delivering a total PoE budget of up to 210W when using an external power adapter.
- Each Ethernet port supports data transfer rates of up to 2.5 Gbps, while the uplink combo port can reach speeds up to 10 Gbps.
- The switch features a compact desktop form factor and supports wall, magnetic, and DIN rail mounting for versatile deployment.
- The switch supports SNMP (Simple Network Management Protocol) when integrated with the UniFi Network Controller for detailed performance and status monitoring.
- Quality of Service (QoS) features are included, enabling prioritization of traffic types to enhance performance for voice, video, and latency-sensitive applications.
- The switch provides advanced management features such as VLAN support, port mirroring, storm control, link aggregation, and jumbo frame support, all accessible via the UniFi Controller.
- The device offers a non-blocking throughput of 30 Gbps and a switching capacity of 60 Gbps, with full support for duplex operation.
- The switch supports passive cooling and operates efficiently, with power consumption depending on the number of active PoE devices; it also includes an energy-saving mode when idle.
- Compliant with IEEE 802.3af/at/bt PoE standards, and supports IEEE 802.1Q VLAN, IEEE 802.3x flow control, and other relevant Ethernet standards.
Specifications
Address Database Size
16000
Auto-Detecting
Yes
Auto-Sensing
Yes
Brand
Ubiquiti
Buffer Memory
2MB
Data Rate Performances
10 Gbps
Data Transfer Rate
Supports a data transfer rate of up to 2.5 Gbps on each RJ45 port and up to 10 Gbps via the SFP+/RJ45 uplink port.
Depth in Inches
3.86
Ethernet Number of Ports
7 to 8
Full-Duplex
Yes
Gaming
Non Gaming
Gigabit Ethernet Uplink
Yes, supports up to 10 Gbps via RJ45/SFP+ uplink port
Height in Inches
1.26
Input Voltage
54V DC via external PSU or PoE++ input
Jumbo Frame
9216 Bytes
LACP
Yes
Layer
2
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
SFP, SFP+
Network Management Type
Managed Switch
Output Voltage
54V DC
Performance Class
Multi-Gigabit
Port Mirroring
Yes, supports port mirroring for network traffic analysis
Power Over Ethernet
Yes
Power Supply
Powered via 54V external AC adapter or PoE++ input
Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3af/at/bt, 802.1Q VLAN, 802.1p QoS, 802.3x Flow Control
Quality of Service
Yes
Series or Collection
Unifi
SNMP
v1, v2, v3
Stackable
Non-Stackable
Switch Form Factor
Desktop, wall mountable
True Color
White
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
1.23
Width in Inches
7.87
Wireless Connectivity
No
