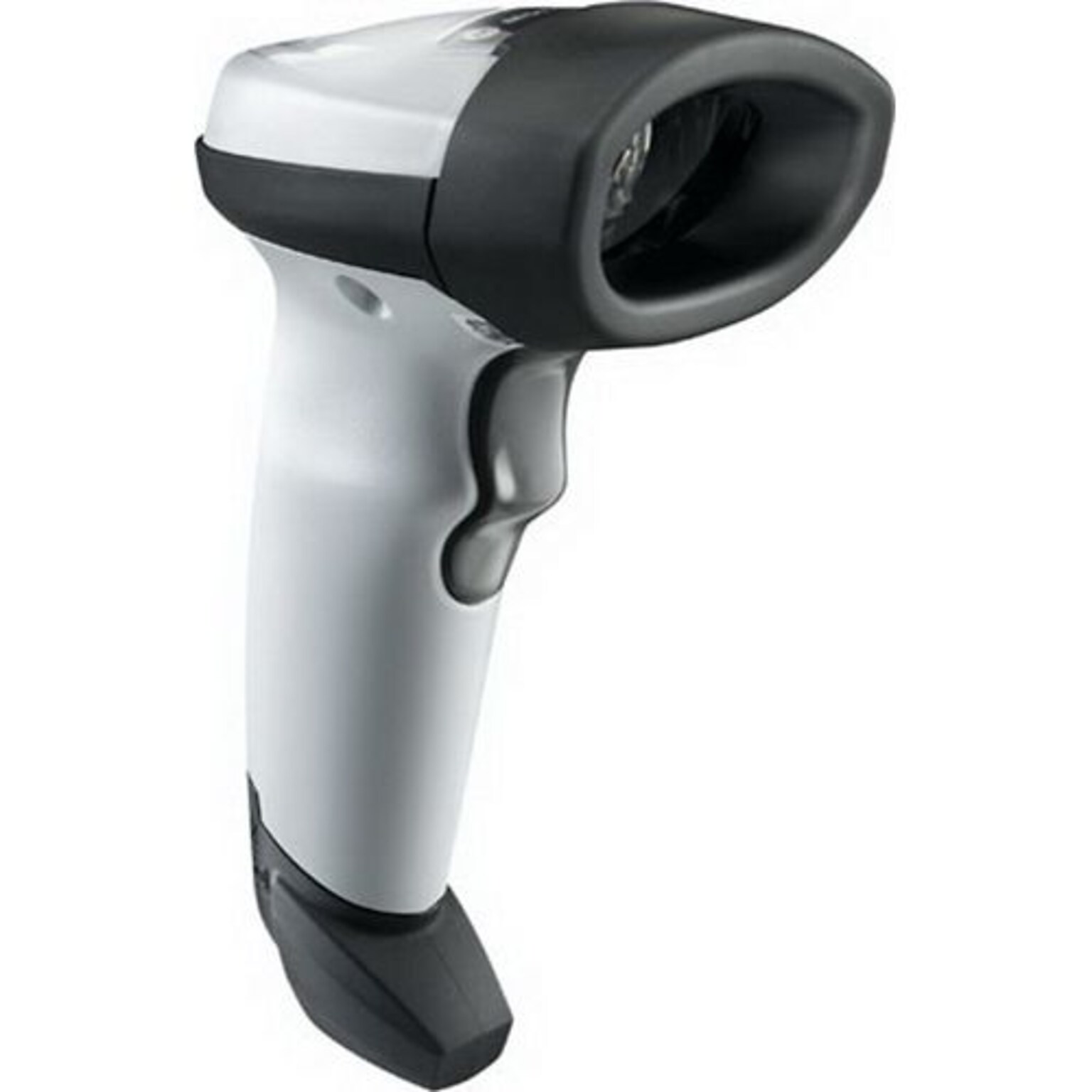

Name: Zebra® LI2208-SR00006ZZNA General Purpose Linear Barcode Scanner, Handheld
Brand: Zebra
Availability: InStock

Description

Specifications

Reviews

Description

Motorola Symbol® White barcode scanner gives reliable scanning in an ergonomic, lightweight form. Scanner with ergonomic design offers all-day user comfort. Motorola Symbol® LI2208-SR00006ZZNA White barcode scanner has an imager image sensor and offers bi-directional scan pattern to decode linear barcodes from a fixed location. Features multiple host interfaces that ensure integration with a wide variety of host systems. Featuring durable and single board construction, scanner reaches stringent 5' drop tests and is suitable for continuous use with scratch resistant tempered glass. Scanner reads images at a scan rate of 100 scans/sec and transfers data to computers through cable connections. Captures barcodes 17" away from the images that increases flexibility of scanner to provide high efficiency. Scanner operates using 650 nm visible laser diode light source for efficient image capture.

General purpose linear barcode scanner virtually captures all 1D barcodes on screens
Comes in nova white color
Dimensions: 6.3"H x 2.64"W x 3.9"D, weight: 4.95 oz.
Interfaces/ports: USB, RS232, keyboard wedge and IBM RS485
Input type: 1D
Power source: 5 VDC +/- 10% <165 mA (scanning) <40 mA (standby) <2.5 mA (USB suspend) <4 mA (low power mode), host power
Scan rate: 547 scans/second
Light source: LED class 1 device 617 nm (amber)
Scan pattern: Single bright aiming line, scan angle: Horizontal 35 deg
Print contrast: 15% MRD, roll: +/- 45 deg, pitch: +/- 65 deg, skew: +/- 65 deg
Barcode symbology supported: UPC/EAN: UPC-A, UPC-E, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code
Depth of field: 4 - 10" at 4 mil, 3 - 13" at 5 mil, 1.5 - 19" at 7.5 mil, 1 - 31" at 13 mil, 1 - 42" at 20 mil, 3 - 55" at 26 mil (200% UPC-A)
Support for over 90 international keyboards enables easy deployment anywhere in the world
Dramatically reduces management time and cost, from initial configuration to day-to-day management, SDK available for custom development
Meets EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1 standards
Temperature: 0 to 50 deg C operating, -40 to 70 deg C storage, humidity: 5 - 95% RH (non-condensing)
Comes with 5 year warranty

The Zebra® LI2208-SR00006ZZNA barcode scanner in nova white color, virtually captures all 1D barcodes on screens and displays. The scanner reads 13 million barcodes from 1" to over 30". Its rugged design withstands 100 consecutive drops to concrete and 1,000 consecutive to 1.64' tumbles. It captures barcode at speed of 547 scans/sec.
