Zebra RS5000X-TCFSSWR Barcode Scanner, Mounted
Item #:
369-IM1NR4435
Model #:
RS5000X-TCFSSWR
Brand:
Zebra
Not yet rated. Be the first to
Write a review!
Loading...
Price drop
$1,424.50
Per each
Want an extra discount today, and every day? Start your free trial.
Zebra RS5000X-TCFSSWR Barcode Scanner, Mounted
Description

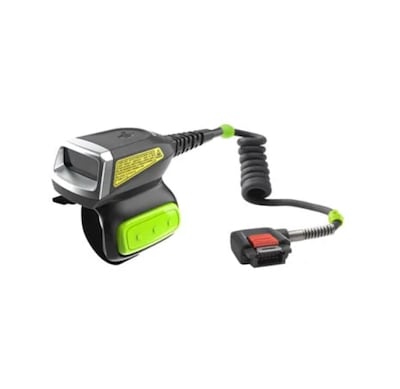

The Zebra RS5000X-TCFSSWR is a rugged, corded wearable 2D imager scanner designed for high-performance, hands-free barcode scanning in demanding environments like warehouses, cold storage, and retail backrooms. It features Zebra's SE4770 scan engine for fast, omnidirectional scanning of both 1D and 2D barcodes, including damaged and poorly printed codes. This model includes a standard-size finger trigger and a short cable that connects directly to Zebra's wearable mobile terminals (such as the WT6000, WT6300, or WT6400), drawing both data and power without the need for an internal battery. Built for durability, the RS5000X is IP65-sealed, drop-tested to 4 feet, and can operate in extreme temperatures ranging from –22°F to 122°F. Its lightweight, ambidextrous design with a rotating trigger and secure nylon strap ensures user comfort across long shifts, while LED feedback provides clear scan confirmation. Ideal for maximizing productivity in scan-intensive workflows, it also integrates seamlessly with Zebra's Mobility DNA and device management tools.
- Wearable 2D barcode scanner designed for high-volume scanning in warehouse, distribution, retail, and cold storage environments.
- Does not have a display, as it is intended to be paired with a wearable mobile computer that provides interface and feedback.
- Casing is made of durable industrial-grade materials in a black finish with red accents and is designed to withstand harsh environments.
- Dimensions are approximately 2.0 inches (H) x 1.6 inches (W) x 1.8 inches (D) for the standard mount, and the unit weighs approximately 2.7 ounces.
- Uses a corded interface that connects to Zebra wearable terminals (e.g., WT6000, WT6300, WT6400) via USB.
- Input is triggered manually with a rotating, ambidextrous finger-mounted button.
- Powered directly through the connected mobile terminal and does not have its own battery; power is continuous while the terminal is in use.
- Can scan barcodes from near contact up to approximately 3 feet (0.9 meters), depending on barcode size and type.
- Comes with a 1-year limited manufacturer warranty, with extended coverage available through Zebra OneCare services.
- Package includes the RS5000X scanner module with an integrated cable, finger strap mount, and documentation.
Specifications
Actuator Type
Manual trigger
Barcode Reader & Scanner Type
Barcode Scanners
Brand
Zebra
Connector, Port or Interface Type(s)
USB
Depth in Inches
1.8
Handheld or Mounted
Mounted
Height in Inches
2
Input Type
Manual trigger input
Maximum Scans per Seconds
Up to 60 scans per second
Scanning Distance (Inches)
1 inch to approximately 36 inches
Scanning Width (mm)
Up to 127 mm
True Color
Black/Red
Warranty Information
1 year
Weight (Ounces)
2.7
Width in Inches
1.6
