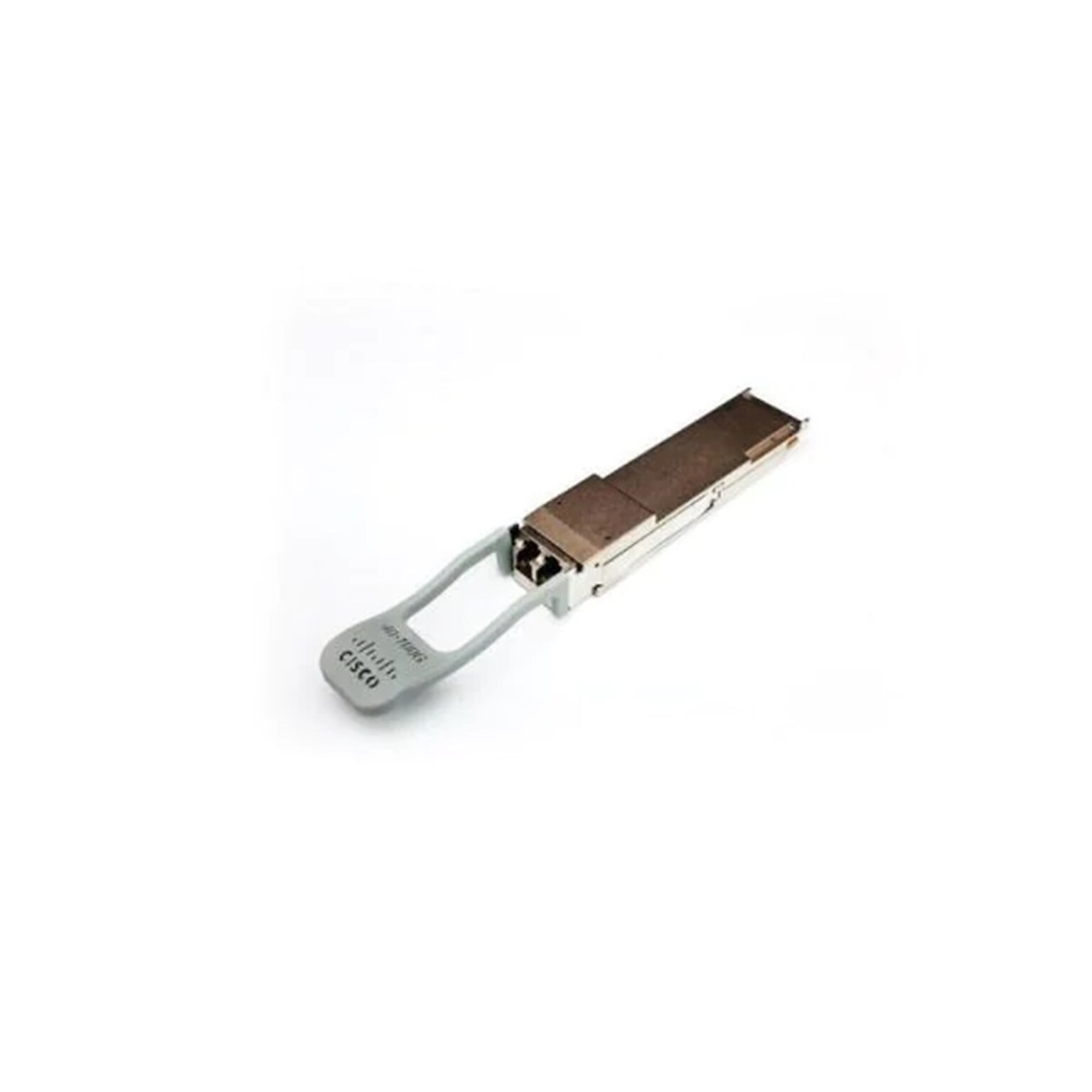

Cisco Gigabit Multi-Mode QSFP Transceiver Module, 100000 Mbps (QSFP-40/100-SRBD=)
$2,711.79
Per each
Cisco Gigabit Multi-Mode QSFP Transceiver Module, 100000 Mbps (QSFP-40/100-SRBD=)
Item #:
901-IM12PQ729
Model #:
QSFP-40/100-SRB
Brand:
Cisco
Not yet rated. Be the first to
Write a review!
New
$2,711.79
Per each
Want an extra discount today, and every day? Start your free trial.
Cisco Gigabit Multi-Mode QSFP Transceiver Module, 100000 Mbps (QSFP-40/100-SRBD=)
Description
The Cisco Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers high-density and low-power Ethernet connectivity for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The Cisco QSFP dual-rate bi-directional (BiDi) transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF).
- Uses multimode fiber (MMF) as the fiber cable type and features a duplex LC optical connector for connectivity.
- QSFP transceivers enable high-speed 40G/100G Ethernet over multimode fiber using BiDi tech for short-reach data center connectivity.
- Supports data transfer rates of up to 100,000 Mbps (100 Gbps) and 40,000 Mbps (40 Gbps).
- Maximum distance of 100 meters over OM4 or OM5 multimode fiber for 100G Ethernet and 150 meters over OM4 for 40G Ethernet.
- Supports 40 Gigabit Ethernet (40GbE) and 100 Gigabit Ethernet (100GbE) over multimode fiber using a duplex LC connector.
- Has a typical power consumption of approximately 3.5 watts.
- Hot-swappable, allowing it to be inserted or removed from a compatible device without powering down the system.
- MSA (Multi-Source Agreement) compliant, ensuring interoperability with other QSFP28-compliant devices across various platforms.
- Operates at two wavelengths: 855 nm and 908 nm, using short-range bidirectional optics over multimode fiber.
Specifications
Brand
Cisco
Compatibility
Cisco Nexus 9000 Series, Cisco Nexus 3000 Series, Cisco Catalyst 9500 Series, Cisco NCS Series, Cisco ONS Transport Platforms
Connector, Port or Interface Type(s)
QSFP, Duplex LC Optical Connector, I²C Interface (internal)
Data Transfer Rate
100,000 Mbps /40,000 Mbps
Fiber Cable Type
Multi-Mode
Fiber Connector Type
LC
Gigabit
Yes
Hot Swappable
Yes
Max. Data Transfer Rate (Mbps)
More than 3000
Max. Distance (Meters)
150
MSA Compliant
Yes
Network Transceiver Type
QSFP
Power Consumption (Watts)
3.5
Protocols
100GBASE-SR-BD, 40GBASE-SR-BD, IEEE 802.3bm, IEEE 802.3ba
Selling Quantity
1
Selling Quantity (UOM)
Each
Used For
High-speed data transmission in enterprise and data center environments
