Datalogic QuickScan QD2131 Linear Imager Barcode Scanner, Handheld

Order Datalogic QuickScan QD2131 Linear Imager Barcode Scanner, Handheld today at Quill.com and get fast shipping. Stack coupons to get free gifts & extra discounts!
Item #: 901-IM13A0401
  Model #: QD2131-BKK1
Brand: Datalogic
Datalogic QuickScan QD2131 Linear Imager Barcode Scanner, Handheld
$133.99 Each
Enter Zip Code

Estimated Delivery Date:
Parcel
Customers Also Viewed
Description

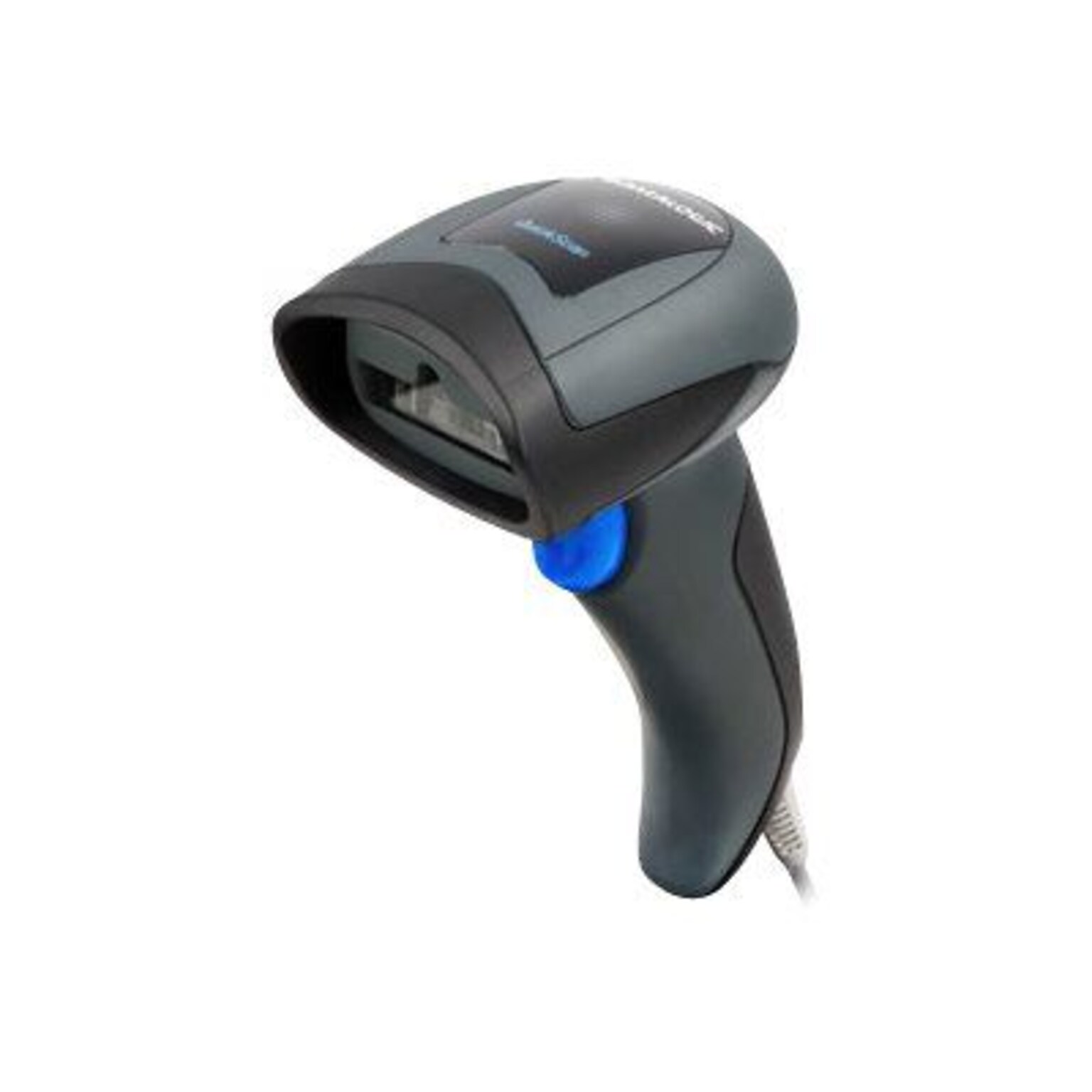

The Datalogic QuickScan QD2131 linear imager barcode scanner in black, offers an extra-wide field of view and an extra-long scan line, allowing users to read longer 1D linear bar codes from a closer distance. Its rugged design withstands multiple 5' drops to concrete. It uses green spot technology for good-reed feedback and has a scan speed of up to 400 scans per sec. It has USB, RS-232 and keyboard wedge interfaces for external connectivity. It is perfect for retail and commercial applications.
  • Handheld barcode scanner offers superior scanning performance
  • Comes in black color
  • Dimensions: 6.4"H x 3.6"W x 1.6"D, weight: 5.3 oz.
  • Interfaces/ports: Keyboard wedge / OEM (IBM), RS-232, USB
  • Input type: 1D
  • Power source: Input: 4.75 - 14 VDC +/-10%, 140 mA at 5 VDC (operating), 50 mA at 5 VDC (standby/idle)
  • Scan rate: 400 scans/second
  • Light source: Red LED 610 - 650 nm
  • Reading indicators: Beeper (adjustable tone and volume), Datalogic 'green spot' good read feedback, good read LED
  • Print contrast: 25% minimum, pitch: +/- 65 deg, roll (tilt): +/- 45 deg, skew (yaw): +/- 70 deg
  • Barcode symbology supported: EAN/JAN composite, GS1 DataBar composite, GS1 DataBar expanded stacked, GS1 DataBar stacked, UPC A/E composite
  • Depth of field: 1.7 - 7.1" at 4 mil/0.8 - 7.1" at 5 mil/0.8 - 11.8" at 7.5 mil/0.8 - 17.3" at 10 mil code 39, 0.8 - 22.8" at 13 mil EAN
  • Sharp and highly visible scan line, light weight and balanced design
  • Decent depth of field reading for general purpose scanning applications, IP42 rating for particulate and water sealing
  • Meets China RoHS, EU RoHS standards
  • Temperature: 0 - 50 deg C operating, -40 - 70 deg C storage
  • Comes with 5 year warranty
Specifications
Barcode Reader & Scanner Type : Barcode Scanners Brand : Datalogic Customizable : No Handheld or Mounted : Handheld
Weight : 0.78 lbs. per Each
