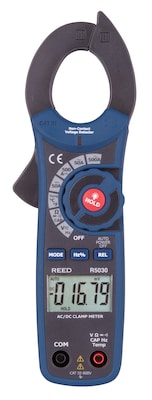

REED Instruments AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, 500A, True RMS (R5030)
$188.99
Per each
REED Instruments AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, 500A, True RMS (R5030)
Item #:
901-2313802
Model #:
R5030
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$188.99
Per each
Want an extra discount today, and every day? Start your free trial.
REED Instruments AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, 500A, True RMS (R5030)
Frequently bought together
Item #: 901-2313802
$188.99
Per each
$188.99
+
Item #: 901-2314650
$122.99
Per each
$122.99
+
Total
$340.57
Customers also viewed
REED SD-6020 Force Gauge Datalogger, 20kg (SD-6020)
Item #: 901-2313749
REED SD-6100 Force Gauge Datalogger, 100kg (SD-6100)
Item #: 901-2313748
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Item #: 901-2313808
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Item #: 901-2313806
Reed Instruments Noncontact Voltage Detector (R5110)
Item #: 901-24552208
Description
Compact AC/DC clamp meter with backlit display, built-in non-contact voltage detector and contact thermometer
This compact autoranging True RMS clamp meter is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring a 50,000 count backlit LCD display, double molded plastic housing, the R5030 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
- 50000-count backlit LCD display with low battery and overrange indicators
- Built-in non-contact voltage detector with LED indicator
- True RMS AC measurements
- Display hold and relative mode
- Diode test and continuity check functions
- Durable double molded plastic housing
- Cat. III 600V safety rating
- 7.9" (h) x 2.6" (w) x 1.5" (d)
- AC/DC current range of 50.00, 500.0A
- AC current accuracy of + or -(2.8% rdg. +30 dgt.)
- DC current accuracy of + or -(2.5% rdg. +30 dgt.)
- AC/DC current resolution of 0.01, 0.1, 1A
- AC voltage range of 500mV, 5, 50, 500, 750V
- DC voltage range of 500mV, 5, 50, 500, 1000V
- AC voltage accuracy of + or -(1.0% rdg. +30 dgt.)
- DC voltage accuracy of + or -(0.1% rdg. +4 dgt.)
- AC/DC voltage resolution of 0.1mV, 0.001, 0.01, 0.1, 1V
- Includes test leads, a thermocouple wire probe, a thermocouple adapter, batteries and a soft carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.5
Digital or Analog
Digital
Environmental Monitoring Type
Clamp Meter
Height in Inches
7.9
Material of Item
Plastic
Selling Quantity
1
Selling Quantity (UOM)
Each
Width in Inches
2.6
