Description
Capable of measuring air velocity and airflow in tight areas

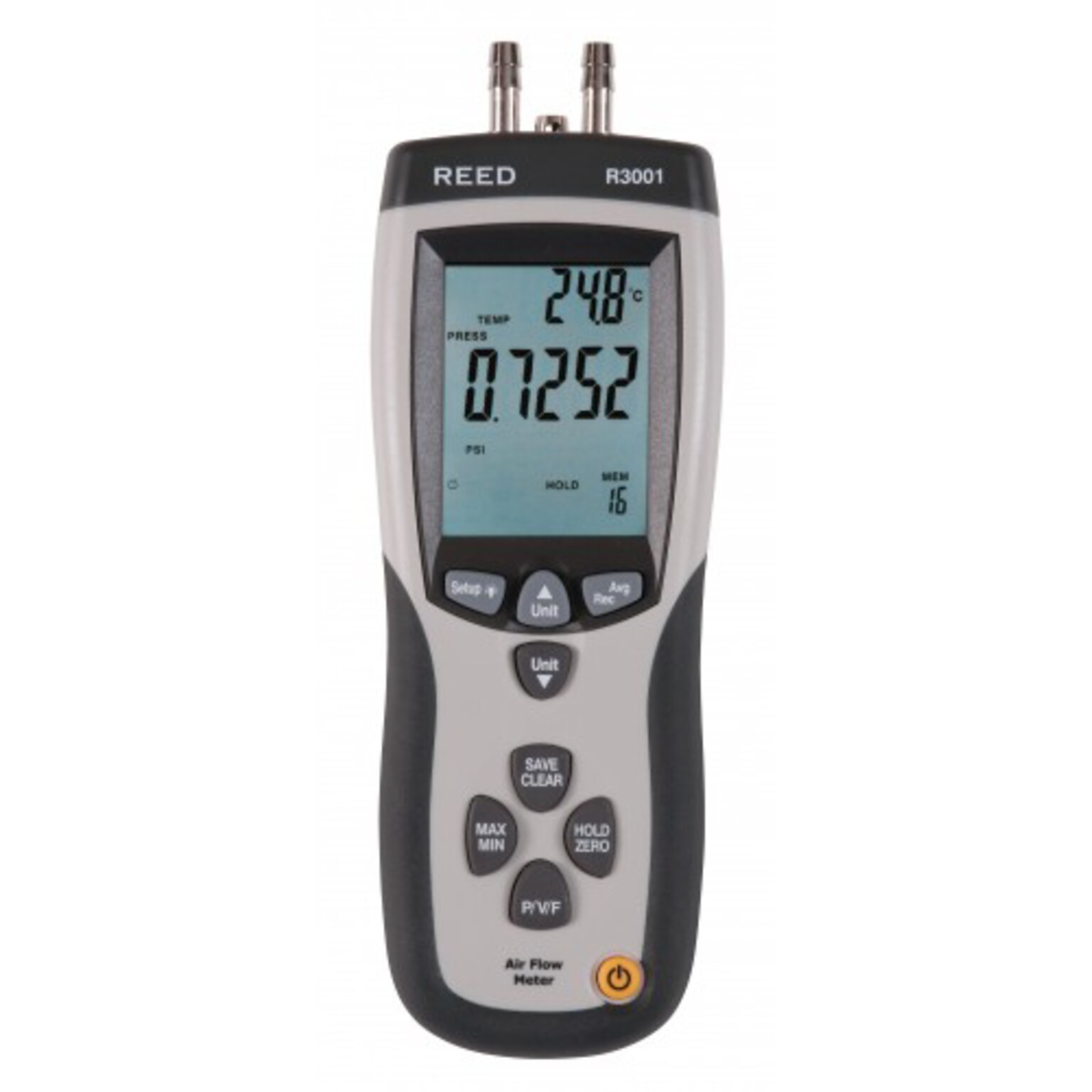

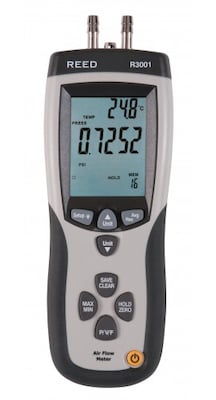

This pitot tube anemometer and differential manometer provides accurate air velocity, airflow and ambient air temperature measurements. The R3001 is capable of capturing maximum, minimum, average and relative readings and features a large dual LCD display with backlit functionality for low lit environments.
- Dual LCD simultaneously displays pressure, air velocity or airflow with temperature
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Large, easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- User selectable unit of measure
- Push button calculation of rectangular or circular duct areas
- USB interface and software included
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
- 8"H x 2.95"W x 2"D
- Grey and Black
- Pressure range of + or -5000 Pa, 0.752 psi, 50.00mbar, 20.07 inH2O, 509.8 mmH2O
- Pressure resolution of 1 Pa, 0.0001 psi, 0.01 mbar, 0.01 inH2O, 0.1 mmH2O
- Accuracy of + or -0.3% fSO
- Repeatability of + or -0.2% fSO
- Linearity/hysteresis of + or -0.29% fSO
- Includes black and white silica tubes, a pitot tube, a power adapter, a USB cable, a 9V battery, a CD software and a carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
2
Digital or Analog
Digital
Environmental Monitoring Type
Anemometer
Height in Inches
8
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
Grey and Black
Width in Inches
2.95
