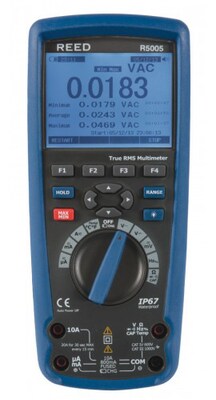

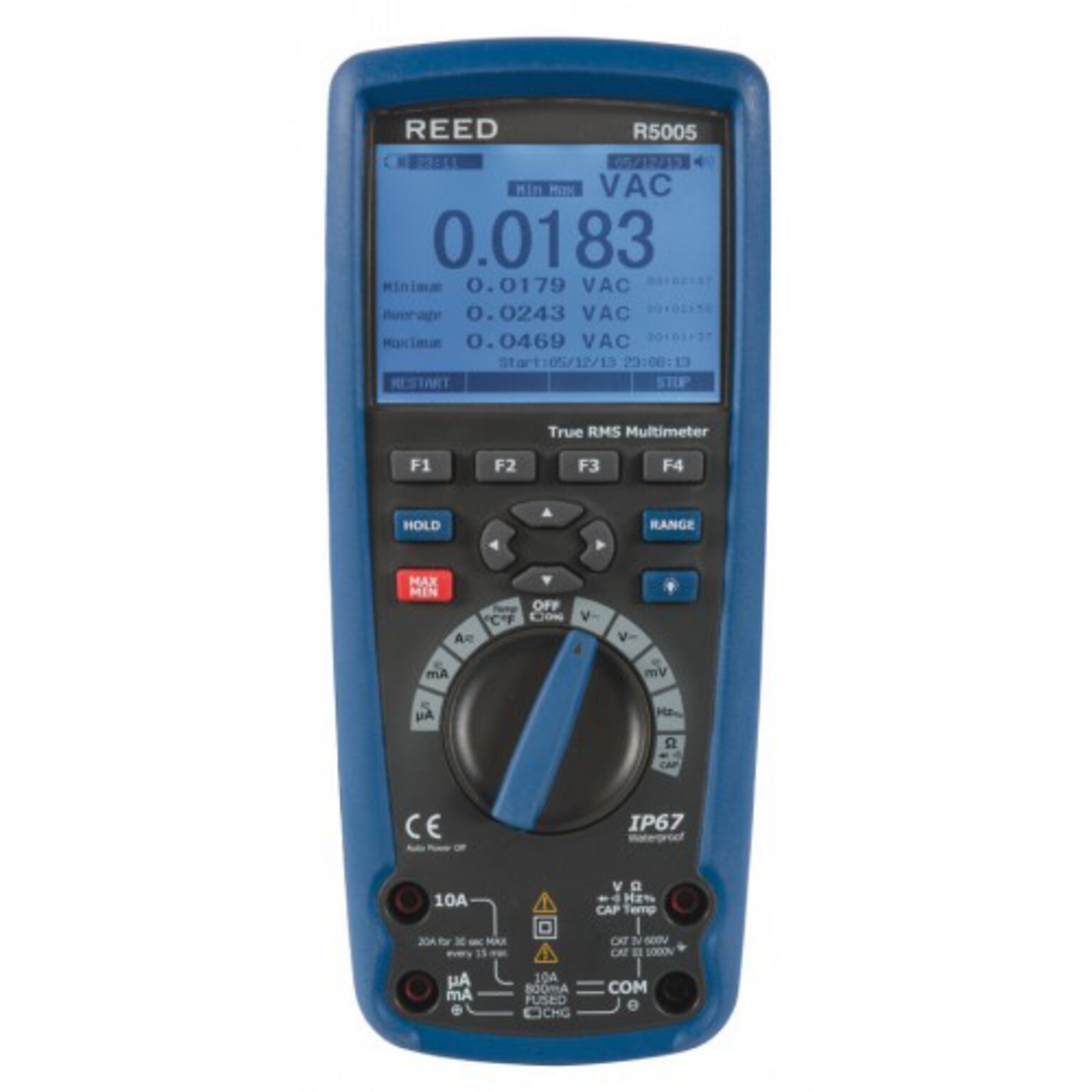

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
$564.99
Per each
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Item #:
901-2313806
Model #:
R5005
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
Loading...
$564.99
Per each
Upgrade to get 5% off, earn points 10% faster and more.
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Customers also viewed
REED Instruments True RMS AC/DC Clamp Meter, 1000A (R5050)
Item #: 901-2313801
REED SD-6100 Force Gauge Datalogger, 100kg (SD-6100)
Item #: 901-2313748
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Item #: 901-2313808
REED R2800 Temperature Simulator (R2800)
Item #: 901-2313814
REED R2810 Thermocouple Calibrator (R2810)
Item #: 901-2313813
Reed Instruments Noncontact Voltage Detector (R5110)
Item #: 901-24552208
Description
Precise True RMS multimeter with 50,000 count backlit display and digital analog bargraph
The REED R5005 True RMS Industrial Multimeter is an full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously. With a large LCD screen, analog bargraph and Bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Measure voltage and current simultaneously on a large backlit LCD
- Record data and and review trends with included software
- Relative, Peak, Min/Max and data hold functions
- Waterproof (IP67) double molded plastic housing
- Cat. IV 600V, Cat. III 1000V safety rating
- 8.7"H x 3.8"W x 2.4"D
- Blue
- AC voltage range of 50, 500mV, 5, 50, 500, 1000V
- DC voltage range of 50, 500mV, 5, 50, 500, 1000V
- AC voltage accuracy of 50/60Hz + or -(0.3% rdg. + 25 dgt.) <1 Khz + or -(0.5% rdg. + 25 dgt.) <5Khz + or -(3% rdg. + 25 dgt.)
- DC voltage accuracy of 50mV + or -(0.5% rdg. + 20 dgt.) 500mV, 5,50,500V + or -(0.025% rdg. + 5 dgt.) 1000V + or -(0.1% rdg. + 5 dgt.)
- AC voltage resolution of 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
- DC voltage resolution of 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
- AC/DC current range of 500, 5000 A, 50, 500mA, 10A
- AC current accuracy of 50/60Hz + or -(0.6% rdg. + 25 dgt.) <1 Khz + or -(1.5% rdg. + 25 dgt.) <5Khz + or -(3% rdg. + 25 dgt.)
- DC current accuracy of 500, 5000 A, 50mA + or -(0.1% rdg. + 20 dgt.) 500mA + or -(0.15% rdg. + 20 dgt.) 10A + or -(0.3% rdg. + 20 dgt.)
- AC/DC current resolution of 0.01, 0.1 A, 0.001, 0.01mA, 0.001A
- Resistance range of 50, 500ohm, 5, 50, 500kohm, 5, 50Mohm
- Includes test leads, a type-K thermocouple wire probe and adapter, weatherproof plugs, a battery, an AC adapter and a software
Specifications
Brand
Reed Instruments
Depth in Inches
2.4
Digital or Analog
Analog
Environmental Monitoring Type
Multimeter
Height in Inches
8.7
Material of Item
Plastic
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
Blue
Width in Inches
3.8
