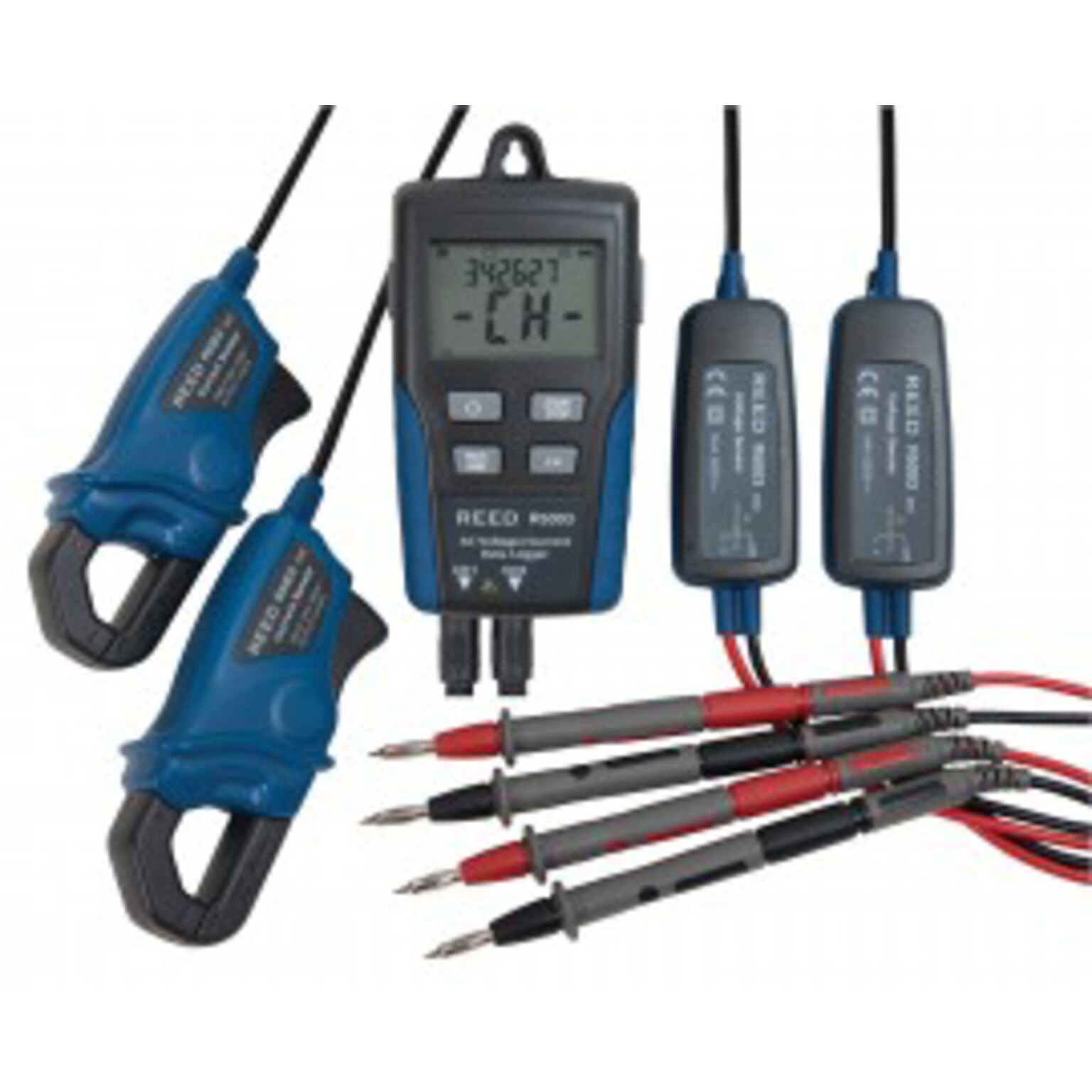

REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
$386.99
Per each
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Item #:
901-2313808
Model #:
R5003
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$386.99
Per each
Want an extra discount today, and every day? Start your free trial.
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Customers also viewed
REED SD-6020 Force Gauge Datalogger, 20kg (SD-6020)
Item #: 901-2313749
REED SD-6100 Force Gauge Datalogger, 100kg (SD-6100)
Item #: 901-2313748
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Item #: 901-2313806
Reed Instruments Noncontact Voltage Detector (R5110)
Item #: 901-24552208
Description
Stores up to 256,000 measurements with user programmable sampling rates
Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. The R5003 can operate remotely with batteries or be plugged in with the included AC adapter. Stored measurements can be downloaded via USB interface and either analyzed with the included software or exported to Microsoft Excel.
- Data log up to 256,000 AC voltage and current measurements
- Dual input measures 2 voltage/current measurement or 1 of each
- LCD simultaneously displays time/date, current readings and Max/Min readings
- User adjustable sample rate from 1 sec to 24 hrs.
- High and low alarms
- Download measurements via USB interface and analyze results with included software
- Magnetic bac allows instrument and sensors to be secured firmly in a variety of locations
- Low battery indicator and auto shut off
- 4.5"H x 2.5"W x 1.3"D
- Black
- AC current resolution of 0.1A
- AC current accuracy of + or -(2% rdg. + or -1A)
- AC voltage resolution of 0.1V
- AC voltage accuracy of + or -(2% rdg. + or -1V)
- Weighs 8.7 lbs. (248gram)
- Powered by by 4 AAA batteries and a CR 3V memory button battery (CR2032)
- Includes an AC current clamp sensor and voltage sensor, an AC adapter, a USB cable and software and a battery
Specifications
Brand
Reed Instruments
Depth in Inches
1.3
Digital or Analog
Digital
Environmental Monitoring Type
Voltage Detector
Height in Inches
4.5
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
Black
Width in Inches
2.5
