REED SD-6020 Force Gauge Datalogger, 20kg (SD-6020)
Item #:
901-2313749
Model #:
SD-6020
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$805.99
Per each
Want an extra discount today, and every day? Start your free trial.

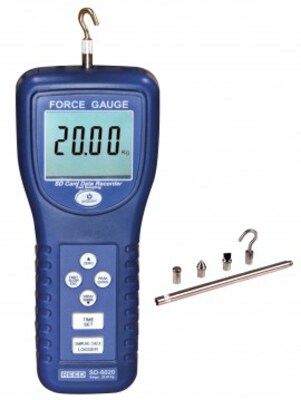

REED SD-6020 Force Gauge Datalogger, 20kg (SD-6020)
Limited quantity available: 14 remaining
Customers also viewed
REED SD-6100 Force Gauge Datalogger, 100kg (SD-6100)
Item #: 901-2313748
REED R5003 Dual Input True RMS AC Voltage/Current Datalogger (R5003)
Item #: 901-2313808
REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter (R5005)
Item #: 901-2313806
Reed Instruments Noncontact Voltage Detector (R5110)
Item #: 901-24552208
Description
Datalogger with date/time stamp stores measurements on SD memory card without the need for software
This gauge has the ability to measure push and pull forces up to 44lbs (20kg) and features a reversible display ensuring measurements are easily read, regardless of testing direction. The SD-6100 features a real time datalogger with memory card slot. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.
- Measures tension and compression
- Records in Peak hold or Normal mode
- Fast/Slow response selection
- Full capacity tare (zero) capability
- Force is measured in kg, lbs. or Newtons
- Large, easy-to-read backlit display
- Reversible display ensures legible readings regardless of direction
- Real-time datalogger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Optional PC software features live tracking via USB connection
- Low battery indicator and auto shut off
- 8"H x 3.25"W x 1.25"D
- Blue
- Resolution of 0.01lbs, 0.01kg or 0.02N
- Accuracy of + or -(5% + 2 dgt.)
- full scale deflection of less than 1mm
- Normal sampling time is 1 second to 8 hours, peak hold is 10 to 500 ms
- Powered by 6 AA batteries
- Weighs 1.43lbs
- Includes a flat head, a cone head, a chisel head and hook adapters, a 120mm ex tension rod and a carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.25
Environmental Monitoring Type
Data Logger
Height in Inches
8
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
Blue
Width in Inches
3.25
